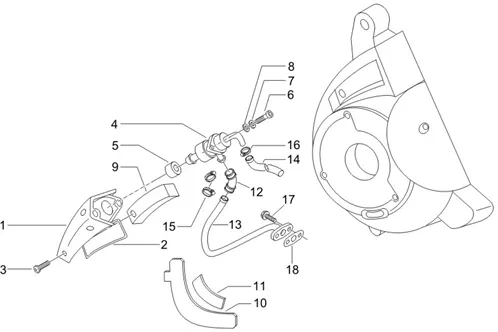

Moteur : 01.46 BOITIÎ AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/196/Runner_125_VX_4T_01.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/4/img/68954.jpg)
1 |
COVER OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-831255 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/7/img/68957.jpg)
2 |
GASKET OF HOUSING SAS OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-831258 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
3 |
SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/8/img/68878.jpg)
4 |
VOLET/VALVE " S. A. S. " OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-82996R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/5/img/68955.jpg)
5 |
GASKET OF HOUSING D'AIR SECONDAIRE OEM PIAGGIO 125 MP3, BEVERLY, X7, X8, X9/GILERA 125 RUNNER, NEXUS-831256 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/3/img/66293.jpg)
6 |
SCREW SHEET METAL (L35MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-296458 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
7 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
8 |
WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/6/img/68956.jpg)
9 |
AIR FILTER SECONDAIRE OEM PIAGGIO APRILIA ATLANTIC 125-250 2003 > 2012/PIAGGIO BEVERLY, MP3, X7, X8, X9, X-EVO 125/VESPA GT 125-831257 More informationQuantity required : 1 |
||||||
10 |
834119 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/8/img/68958.jpg)
12 |
SLEEVE HOUSING DE DEPOLUTION OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-831259 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/9/img/68959.jpg)
13 |
TUBE DE HOUSING DEPOLUTION OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-831260 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/8/1/img/69281.jpg)
14 |
TUBE RECYCLAGE DE THROTTLE OEM COMMON A LA RANGE PIAGGIO-843400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
15 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
16 |
HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
17 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/8/9/img/68989.jpg)
18 |
GASKET CANALISATION RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 4T/MAXI SCOOTER 125-832059 More informationQuantity required : 1 |
||||||
|
19 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 2 |
