Vehicle Exploded View - GILERA RUNNER 125 VX 4T
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

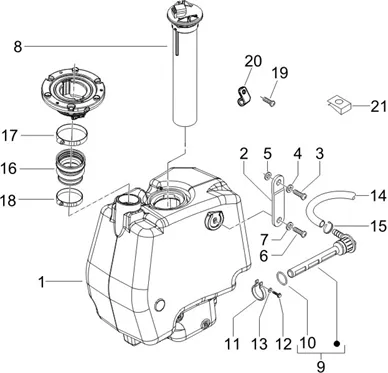

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/196/Runner_125_VX_4T_02.47.PNG)
1 |
653041-FUEL TANK More informationQuantity required : 1 |
||||||
|
2 |
624326-BRACKET More informationQuantity required : 1 |
||||||
|
2 |
624090-BRACKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
3 |
SCREW BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-122675 More informationQuantity required : 2 |
||||||
|
3 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
|
3 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
3 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
4 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
5 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
5 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/5/img/65405.jpg)
6 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-015946 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
6 |
SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086 More informationQuantity required : 2 |
||||||
|
7 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
|
7 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/1/7/8/1/img/201781.jpg)
8 |
JAUGE A FUEL OEM PIAGGIO 125-250-300-350-400-500 MP3, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS, X7, 125-300 YOURBAN/GILERZ 125 RUNNER, NEXUS, 500 FUOCO-CM0257073 More informationQuantity required : 1 |
||||||
|
8 |
JAUGE A FUEL OEM PIAGGIO 125-250-300-350-400-500 MP3, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS, X7, 125-300 YOURBAN/GILERZ 125 RUNNER, NEXUS, 500 FUOCO-CM0257073 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/6/7/8/img/91678.jpg)
9 |
FUEL COMPLETE COUPLING "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA GTS, VESPA LX/GILERA 125 RUNNER (50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011>-PAR DEFAUT) -674592 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
10 |
GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
11 |
CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
|
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
13 |
WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
14 |
HOSE/FUEL HOSE (5X10X1060) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-CM001432 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
15 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/4/6/5/img/91465.jpg)
16 |
SLEEVE DE FUEL TANK OEM PIAGGIO 125-300-350 BEVERLY, 125 MEDLEY, 50 NRG POWER/GILERA 50-125 RUNNER-673778 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/9/img/72879.JPG)
17 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE APRILIA/GILERA-CM001920 More informationQuantity required : 1 |
||||||
|
18 |
CM001919-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
19 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 1 |
||||||
|
20 |
294013-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
21 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
22 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/1/img/65961.jpg)
23 |
231027-SPACER More informationQuantity required : 1 |
||||||
|
24 |
268304-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
25 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 1 |
