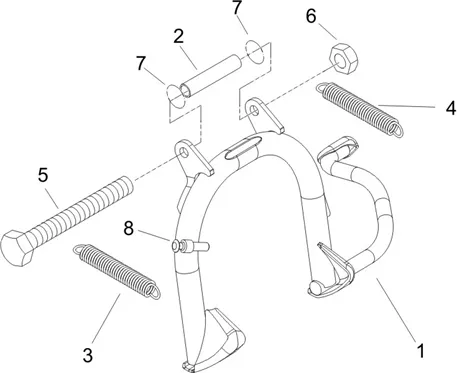

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/196/Runner_125_VX_4T_02.25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/7/img/67417.jpg)
1 |
CENTRE STAND OEM PIAGGIO 50-125 LIBERTY 4T 1998 > 2012/APRILIA 50 SCARABEO 4T 2002 > 2012-600183 More informationQuantity required : 1 |
||||||
1 |
647246 - BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/1/img/67251.jpg)
2 |
SPACER DE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/8/img/67208.jpg)
3 |
SPRING DE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-581248 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/9/img/67209.jpg)
4 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-581249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/5/img/65625.jpg)
5 |
SCREW TH (10X130) DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-030115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
7 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/4/img/67224.jpg)
8 |
BUFFER/RUBBER DE STAND PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-581560 More informationQuantity required : 1 |
