Vehicle Exploded View - GILERA RUNNER 125 VX 4T-SC-(Euro 3)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

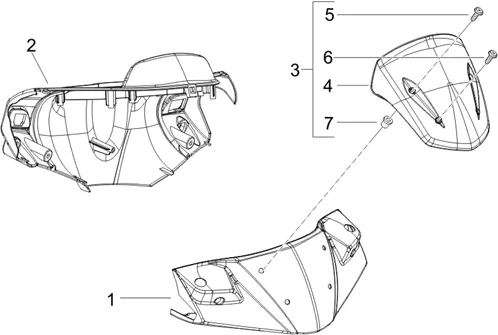

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/194/Runner_125_VX_4T-SC-(Euro_3)_03.01.PNG)
1 |
65268500R7 - COUVRE GUIDON AV RUNNER RST More informationQuantity required : 1 |
||||||
|
1 |
655189-HANDLEBAR COVER AV * More informationQuantity required : 1 |
||||||
|
2 |
959347000C-COVER STEERING ARR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/4/7/1/img/88471.jpg)
3 |
PROTECTOR-SCREEN OEM PIAGGIO 125 CARNABI/GILERA 125 RUNNER 2016 <-654800 More informationQuantity required : 1 |
||||||
|
4 |
PROTECTOR-SCREEN OEM PIAGGIO 125 CARNABI/GILERA 125 RUNNER 2016 <-654800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
5 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/6/img/66036.jpg)
6 |
SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259372 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
7 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 4 |
