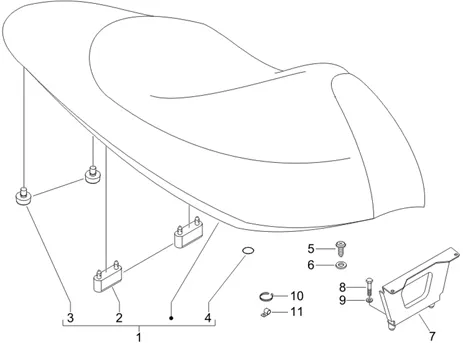

Vehicle Exploded View - GILERA RUNNER 125 VX 4T-SC-(Euro 3) GILERA

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES - TROUSSE À OUTILS
Selle/sieges - Trousse à outils
Search
SADDLE- "PIAGGIO GENUINE PART" GILERA 200 RUNNER -624429-

1
P2R reference P2R reference 85082
Maker reference Maker reference 624429

SEAT OEM PIAGGIO GILERA 200 RUNNER-624429

More information

Quantity required : 1

BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456

2
P2R reference P2R reference 66292
Maker reference Maker reference 296456

BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456

More information

Quantity required : 2

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

3
P2R reference P2R reference 67157
Maker reference Maker reference 577492

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

More information

Quantity required : 2

005966 - ANNEAU ELAST. S00596600

4
P2R reference P2R reference 73668
Maker reference Maker reference 0059665

005966-ANNEAU ELAST. S00596600

More information

Quantity required : 2

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

5
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 2

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

6
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 2

623989 - RENFORT CHARNIERE SELLE

7
P2R reference P2R reference 84960
Maker reference Maker reference 623989

623989-RENFORT CHARNIERE SEAT

More information

Quantity required : 1

SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086

8
P2R reference P2R reference 65637
Maker reference Maker reference 0310865

SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086

More information

Quantity required : 2

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

9
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 2

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

10
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 1

CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203

11
P2R reference P2R reference 72919
Maker reference Maker reference CM013203

CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203

More information

Quantity required : 1
