Vehicle Exploded View - GILERA RUNNER 125 VX 4T-SC-(Euro 3)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

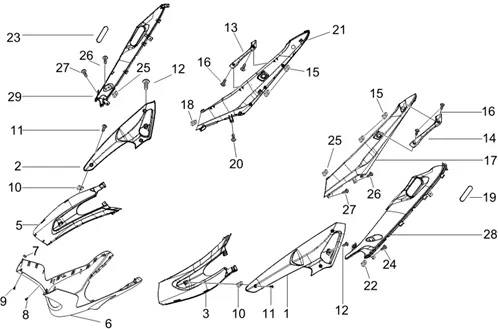

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/194/Runner_125_VX_4T-SC-(Euro_3)_02.32.PNG)
1 |
949437-SIDE PANEL GAU. More informationQuantity required : 1 |
||||||
|
1 |
94943700EM-SIDE PANEL GAU. More informationQuantity required : 1 |
||||||
|
2 |
949438-SIDE PANEL DR. More informationQuantity required : 1 |
||||||
|
3 |
SIDE PANEL LATERAL LEFT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-949407000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
4 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/9/3/img/93693.jpg)
5 |
SIDE PANEL LATERAL RIGHT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-949408000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/3/6/7/img/89367.jpg)
6 |
SPOILER RIGHT OEM PIAGGIO GILERA 50-125 RUNNER BLACK 94-6565236090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/3/6/5/img/89365.jpg)
6 |
SPOILER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2005> RAW TO BE PAINTED -6565235 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
7 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
8 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
9 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
10 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 6 |
||||||
|
11 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 6 |
||||||
|
12 |
959614-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/0/5/8/img/89058.jpg)
13 |
GRIP PASSENGER REAR RIGHT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-656034000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/0/5/9/img/89059.jpg)
14 |
GRIP PASSENGER REAR LEFT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-656035000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
15 |
NUT SHEET METAL (M8) OEM PIAGGIO COMMON A LA RANGE-575268 More informationQuantity required : 4 |
||||||
|
16 |
SCREW BTR HEAD BOMBEE (8X35) OEM PIAGGIO COMMON A LA RANGE-970273 More informationQuantity required : 4 |
||||||
|
17 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO GILERA 50-125 RUNNER 2005 > UNPAINTED READY TO PAINT-949413 More informationQuantity required : 1 |
||||||
|
17 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2005> BLACK 94 -9494130090- More informationQuantity required : 1 |
||||||
|
18 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/1/3/img/139413.jpg)
19 |
CATADIOPTRE LATERAL OEM PIAGGIO 50 ZIP, VESPA LX, 50-125 LIBERTY, 250-300-400-500 MP3: GILERA 50-125 RUNNER-58231R5 More informationQuantity required : 1 |
||||||
|
20 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/9/6/img/93696.jpg)
21 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50-125 RUNNER 2005 > 2016 UNPAINTED READY TO PAINT-949412 More informationQuantity required : 1 |
||||||
|
21 |
9494120090 - AILE AR DROITE RUNNER RST NOIR 94 More informationQuantity required : 1 |
||||||
|
22 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 3 |
||||||
|
23 |
CATADIOPTRE LATERAL OEM PIAGGIO 50 ZIP, VESPA LX, 50-125 LIBERTY, 250-300-400-500 MP3: GILERA 50-125 RUNNER-58231R5 More informationQuantity required : 1 |
||||||
|
24 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 3 |
||||||
|
25 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
|
26 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
|
27 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 4 |
||||||
|
28 |
949417000C - AILE AR GAUCHE More informationQuantity required : 1 |
||||||
|
29 |
949418000C - AILE AR DROITE More informationQuantity required : 1 |
