Vehicle Exploded View - GILERA RUNNER 125 VX 4T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

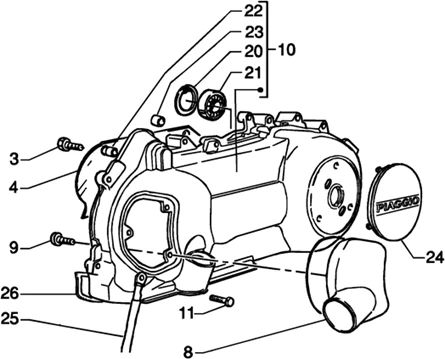

Moteur : T15 REFROIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/661/Runner_125_VX_4T_1998-2005_T15.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
3 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264 More informationQuantity required : 4 |
||||||
4 |
841228 - DIAPHRAGME POUR AIR CHAUD More informationQuantity required : 1 |
||||||
|
4 |
Diaphragme pour air chaud |
||||||
|
4 |
483638-CLAMP More informationQuantity required : 1 |
||||||
|
4 |
DIAPHRAGME FOR AIR CHAUD 125CC-873682 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/8/img/68668.jpg)
8 |
COVER EMBOUT PRISE AIR OEM PIAGGIO 125-200 2005 <-827400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/7/1/img/69171.jpg)
8 |
COVER DE COOLING CASING TRANSMISSION OEM PIAGGIO 125-200-250 X8, X9, XEVO, MP3-840959 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
9 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 2 |
||||||
|
10 |
Couvercle |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/8/7/img/69187.jpg)
10 |
COVER DE TRANSMISSION OEM PIAGGIO 125 MP3, BEVERLY, X7, X8, X9, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC 2013 <-8413805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
11 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
20 |
CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/1/img/66571.jpg)
21 |
BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
22 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
23 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
|
24 |
CM155102-COVER More informationQuantity required : 1 |
||||||
|
25 |
581309 - PROTECTION More informationQuantity required : 1 |
||||||
|
26 |
483783-GASKET More informationQuantity required : 1 |
All the exploded views of this vehicle
-
