Vehicle Exploded View - GILERA RUNNER 125 VX 4T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

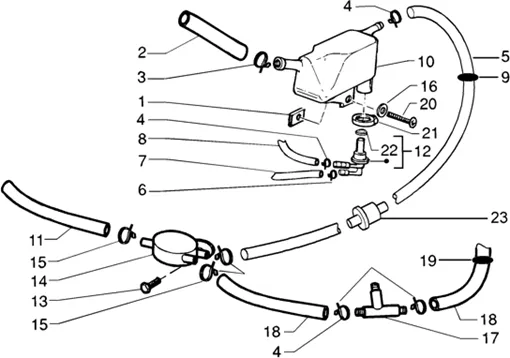

Châssis : T36 CIRCUIT D'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/661/Runner_125_VX_4T_1998-2005_T36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
1 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
2 |
CM002205 TUBE DEPRESSIONE More informationQuantity required : 1 |
|||||||||
|
3 |
CM002912-CLAMP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
4 |
HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
5 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
6 |
HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901 More informationQuantity required : 2 |
|||||||||
|
7 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/0/img/72900.jpg)
8 |
HOSE/FUEL HOSE OEM PIAGGIO 125 LIBERTY, VESPA LX, VESPA-S-CM006105 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
9 |
RUBBER MOUNT OEM PIAGGIO COMMON A TOUTE LA RANGE MAXISCCOOTER-258904 More informationQuantity required : 1 |
|||||||||
|
10 |
577871 - DEGAZEUR More informationQuantity required : 1 |
|||||||||
|
11 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/7/4/img/81374.jpg)
12 |
ROBINET FUEL OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2005-577881 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
13 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
14 |
FUEL PUMP OEM PIAGGIO 50 FLY 4T 2012 >, NRG 2005 >, 125 MP3 2007 >, X8 2004 >, X-EVO 2007 >/50-125 GILERA RUNNER 2005 >/APRILIA 125 ATLANTIC 2003 >-CM120903 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
15 |
CLAMP FOR HOSE DE 13MM OEM PIAGGIO COMMON A LA RANGE-CM002907 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/2/img/68492.jpg)
16 |
WASHER PLATE (8X24X2) OEM PIAGGIO COMMON A LA RANGE-709077 More informationQuantity required : 1 |
|||||||||
|
17 |
FITTING EN " T " OEM APRILIA RSV-4 1000 2009 > 2016, TUONO V4 1000 R 2011 > 2015/PIAGGIO TYPHOON 125 4T 2011 > 2017, X9 125 1998 > 2005-828325 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
18 |
HOSE/FUEL HOSE (5X10X1060) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-CM001432 More informationQuantity required : 2 |
|||||||||
|
18 |
Tuyau reniflard radiateur |
|||||||||
|
19 |
ANNEAU |
|||||||||
|
19 |
HOSE/FUEL HOSE (5X10X1060) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-CM001432 More informationQuantity required : 1 |
|||||||||
|
20 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
21 |
CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
22 |
GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/8/9/img/77289.jpg)
23 |
FUEL FILTER OEM PIAGGIO 125 MP3 2007 >, X7 2008 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, VESPA GTS 2007 > 50 FLY 4T 2005 >/GILERA 125 NEXUS 2007 >, RUNNER 2004 > 50 RUNNER PURE-JET 2005 >-270423 More informationQuantity required : 1 |
|||||||||
|
24 |
217280 - COLLIER More informationQuantity required : 1 |
|||||||||
