Vehicle Exploded View - GILERA RUNNER 125 VX 4T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

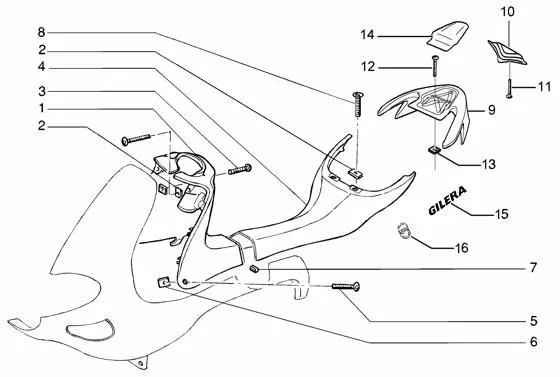

Châssis : T31 CARÉNAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/661/Runner_125_VX_4T_1998-2005_T31.PNG)
1 |
298132000P - PROTECTION SUP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
2 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
3 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
|
4 |
299384000P - PROTECTION AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
5 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/7/3/img/78073.jpg)
7 |
CLIPS ACCROCHAGE OEM PIAGGIO COMMON A LA RANGE-299693 More informationQuantity required : 5 |
||||||
|
8 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
||||||
|
9 |
DOOR LUGGAGE OEM PIAGGIO GILERA 50-125 RUNNER EARLY MODEL-6208840095 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/5/9/img/81359.jpg)
10 |
LUGGAGE RACK GRID "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -577833- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
11 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/9/0/img/96290.jpg)
12 |
SCREW TORX (6X55) OEM PIAGGIO COMMON A LA RANGE-CM179306 More informationQuantity required : 4 |
||||||
|
12 |
SCREW TORX (6X55) OEM PIAGGIO COMMON A LA RANGE-CM179306 More informationQuantity required : 4 |
||||||
|
13 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/5/8/img/81358.jpg)
14 |
COVER DE DOOR LUGGAGE REAR OEM PIAGGIO 50-125 RUNNER 1998 > 2005-577832 More informationQuantity required : 1 |
||||||
|
15 |
5739140029 - MONOGRAMME GILERA BLANC More informationQuantity required : 1 |
||||||
|
15 |
5739140034 - AUTOCOLLANT GILERA ROUGE C30 More informationQuantity required : 1 |
||||||
|
16 |
DECOR GILERA LAT |
