Vehicle Exploded View - GILERA RUNNER 125 ST 4T E3 2008-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

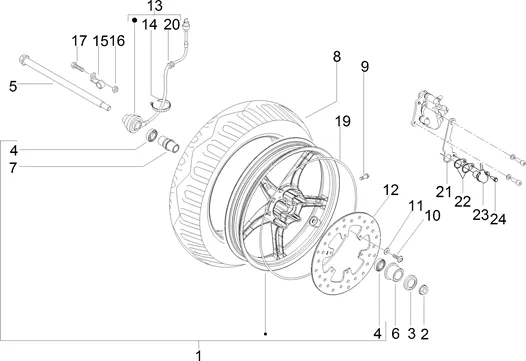

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/189/Runner_125_ST_4T_E3_2008-2013_04.11.PNG)
1 |
56388R000G-FRONT WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
2 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/7/img/67057.jpg)
3 |
WASHER PROTECTOR POUSSIERE FRONT WHEEL OEM PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016 <-5644756 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
4 |
BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/3/img/70913.jpg)
5 |
WHEEL SPINDLE FRONT OEM PIAGGIO 50 NRG, RUNNER GILERA 2005 >-959376 More informationQuantity required : 1 |
||||||
|
6 |
649915-ENTROISE More informationQuantity required : 1 |
||||||
|
7 |
600257-SPACER More informationQuantity required : 1 |
||||||
|
7 |
6019895 - ENTROISE More informationQuantity required : 1 |
||||||
|
8 |
666381 - PNEU 120/70-14" MICHELIN CITY GRIP More informationQuantity required : 1 |
||||||
|
8 |
949602 - PNEUS 120/70-14" 55P SAVA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
9 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
10 |
SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/2/img/66992.jpg)
11 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-560136 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/6/3/img/140363.jpg)
12 |
BRAKE DISC MAXI SCOOTER OEM PIAGGIO 125-250-300-400-500 MP3 2007 >, 125-300 YOURBAN, 50 NRG 2018 >/GILERA 50-125 RUNNER 2005 >, 500 FUOCO 2007 > FRONT-56394R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/6/3/img/87063.jpg)
13 |
SENSOR OF SPEED/CABLE/CONTROL DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 GILERA RUNNER 2005 >-6503086 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
14 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
16 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
17 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
17 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
19 |
64773600H4-BANDE DECORATION More informationQuantity required : 2 |
||||||
|
19 |
64773600L1-BANDE DECORATION RUNNER More informationQuantity required : 2 |
||||||
|
19 |
64773600RL - BANDE DECORATION More informationQuantity required : 2 |
||||||
|
20 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-560136 More informationQuantity required : 1 |
||||||
|
21 |
668254-CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/4/2/img/90442.jpg)
22 |
WASHER SENSOR OEM PIAGGIO COMMON A LA RANGE-668780 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/5/8/6/img/86586.jpg)
23 |
SENSOR FOR SPEEDOMETER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> -6433665 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
24 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 1 |
