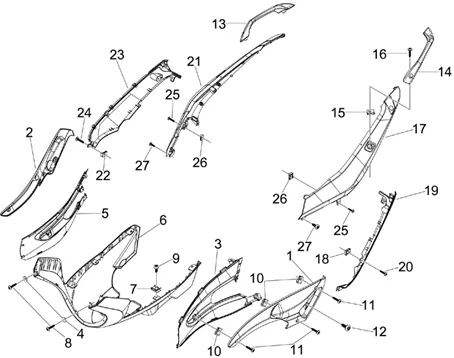

Vehicle Exploded View - GILERA RUNNER 125 ST 4T E3 2008-2013

	P2R reference	91257
	Maker reference	673522000C

673522000C-SIDE PANEL GAU.

	P2R reference	88614
	Maker reference	65508800H1

65508800H1-SIDE PANEL GAU.

	P2R reference	91259
	Maker reference	673523000C

673523000C-SIDE PANEL DR *

	P2R reference	88615
	Maker reference	65508900H1

65508900H1-SIDE PANEL DR.

	P2R reference	93692
	Maker reference	949407000C

SIDE PANEL LATERAL LEFT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-949407000C

	P2R reference	65360
	Maker reference	0137635

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

	P2R reference	93693
	Maker reference	949408000C

SIDE PANEL LATERAL RIGHT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-949408000C

	P2R reference	89365
	Maker reference	6565235

SPOILER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2005> RAW TO BE PAINTED -6565235

	P2R reference	89366
	Maker reference	6565230087

SPOILER UNPAINTED OEM PIAGGIO GILERA 125 RUNNER ST 2008 > 2016-6565230087

	P2R reference	89367
	Maker reference	6565230090

SPOILER RIGHT OEM PIAGGIO GILERA 50-125 RUNNER BLACK 94-6565236090

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	66301
	Maker reference	297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	72925
	Maker reference	CM017409

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	70921
	Maker reference	959614

959614-SCREW

	P2R reference	89058
	Maker reference	656034000C

GRIP PASSENGER REAR RIGHT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-656034000C

	P2R reference	89059
	Maker reference	656035000C

GRIP PASSENGER REAR LEFT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-656035000C

	P2R reference	67114
	Maker reference	575268

NUT SHEET METAL (M8) OEM PIAGGIO COMMON A LA RANGE-575268

	P2R reference	94155
	Maker reference	970273

SCREW BTR HEAD BOMBEE (8X35) OEM PIAGGIO COMMON A LA RANGE-970273

	P2R reference	93708
	Maker reference	949413

BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO GILERA 50-125 RUNNER 2005 > UNPAINTED READY TO PAINT-949413

	P2R reference	93709
	Maker reference	949413000C

949413000C-BODY PANEL REAR LEFT

	P2R reference	93711
	Maker reference	9494130090

REAR COWL -LEFT- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2005> BLACK 94 -9494130090-

	P2R reference	93712
	Maker reference	94941300AO

94941300AO-BODY PANEL REAR LEFT

	P2R reference	93713
	Maker reference	94941300BR

94941300BR - AILE AR GAUCHE

	P2R reference	93715
	Maker reference	94941300EV

94941300EV-BODY PANEL REAR LEFT

	P2R reference	93716
	Maker reference	94941300H4

94941300H4-BODY PANEL REAR LEFT *

	P2R reference	93718
	Maker reference	94941300NI

REAR COWL -LEFT- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> BLACK 80/B -94941300NI

	P2R reference	93719
	Maker reference	94941300R7

94941300R7 - AILE AR GAUCHE RUNNER RST ROUGE DRAGON 8

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	88578
	Maker reference	655045000C

655045000C-BODY PANEL REAR LEFT

	P2R reference	88577
	Maker reference	655045

655045 - AILE AR GAUCHE

	P2R reference	88579
	Maker reference	6550450090

6550450090-BODY PANEL REAR LEFT

	P2R reference	88580
	Maker reference	65504500BR

65504500BR-BODY PANEL REAR LEFT

	P2R reference	88581
	Maker reference	65504500EV

65504500EV-BODY PANEL REAR LOWER LEFT OEM GILERA RUNNER ST 125 2008 > 2016 GREY 713/B

	P2R reference	88583
	Maker reference	65504500NI

65504500NI - AILE AR GAUCHE

	P2R reference	88584
	Maker reference	65504500R7

65504500R7-BODY PANEL REAR LEFT

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	93697
	Maker reference	949412000C

949412000C-BODY PANEL AR RIGHT

	P2R reference	93699
	Maker reference	9494120090

9494120090 - AILE AR DROITE RUNNER RST NOIR 94

	P2R reference	93700
	Maker reference	94941200AO

94941200AO-BODY PANEL AR RIGHT

	P2R reference	93701
	Maker reference	94941200BR

BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO GILERA 50-125 RUNNER 2007 > WHITE 544-94941260BR

	P2R reference	93703
	Maker reference	94941200EV

94941200EV-BODY PANEL AR RIGHT

	P2R reference	93704
	Maker reference	94941200H4

94941260H4-BODY PANEL AR RIGHT

	P2R reference	93706
	Maker reference	94941260NI

BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO GILERA 50-125 RUNNER 2008 > BLACK 80/B-94941260NI

	P2R reference	93707
	Maker reference	94941200R7

94941200R7-BODY PANEL AR RIGHT RUNNER RST

	P2R reference	93696
	Maker reference	949412

BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50-125 RUNNER 2005 > 2016 UNPAINTED READY TO PAINT-949412

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	88585
	Maker reference	655046

655046-BODY PANEL AR RIGHT

	P2R reference	88586
	Maker reference	655046000C

655046000C-BODY PANEL AR RIGHT

	P2R reference	88587
	Maker reference	6550460090

6550460090-BODY PANEL AR RIGHT

	P2R reference	88588
	Maker reference	65504600BR

65504600BR-BODY PANEL AR RIGHT

	P2R reference	88589
	Maker reference	65504600EV

65504600EV-BODY PANEL AR RIGHT

	P2R reference	88591
	Maker reference	65504600NI

65504600NI - AILE AR DROITE

	P2R reference	88592
	Maker reference	65504600R7

65504600R7-BODY PANEL AR RIGHT

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349
