Vehicle Exploded View - GILERA RUNNER 125 ST 4T E3 2008-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

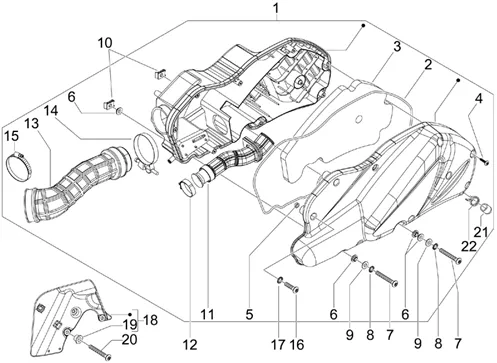

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/189/Runner_125_ST_4T_E3_2008-2013_01.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/0/5/img/70405.jpg)
1 |
HOUSING FILTER AIR OEM PIAGGIO 125 BEVERLY 2007 >, CARNABY 2007 >, X7 2008 >/GILERA 125 RUNNER 2005 >, NEXUS 2007 >/APRILIA 125 ATLANTIC 2006 >, SPORT-CITY 2006 >-871804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/3/img/68833.jpg)
2 |
GASKET COVER AIR FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-829259 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/7/0/img/156970.jpg)
3 |
ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) MAXI SCOOTER OEM PIAGGIO 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO-8292580P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
4 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/9/img/68889.jpg)
5 |
BUSH/BUSH OEM PIAGGIO COMMON A LA RANGE-830057 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
6 |
BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/8/img/65448.jpg)
7 |
SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
8 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
9 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/9/img/69379.jpg)
11 |
SLEEVE AIR FILTER OEM PIAGGIO 125 BEVERLY 2007 > 2015-845996 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
12 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 1 |
||||||
13 |
845995-SLEEVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/6/img/66046.jpg)
14 |
CLAMP 58-62. 5 OEM PIAGGIO COMMON A LA RANGE-260918 More informationQuantity required : 1 |
||||||
|
15 |
CLAMP 58-62. 5 OEM PIAGGIO COMMON A LA RANGE-260918 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/6/4/6/img/75646.jpg)
16 |
SCREW TORX (6X55) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-1B000678 More informationQuantity required : 1 |
||||||
|
16 |
SCREW TORX (6X55) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-1B000678 More informationQuantity required : 1 |
||||||
|
17 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 1 |
||||||
|
18 |
PROTECTOR ASPIRATION AIR FILTER OEM PIAGGIO GILERA RUNNER 125 2005 > 2016/PIAGGIO BEVERLY 125-300 2010 > 2017, MP3 300 2016 > 2018-657226 More informationQuantity required : 1 |
||||||
|
19 |
BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
20 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/1/img/68701.jpg)
21 |
PURGEUR HOUSING DE AIR FILTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 4T ET MAXI SCOOTER-827831 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
22 |
CLAMP HOSE (D13) COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM002910 More informationQuantity required : 2 |
