Vehicle Exploded View - GILERA RUNNER 125 FX 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

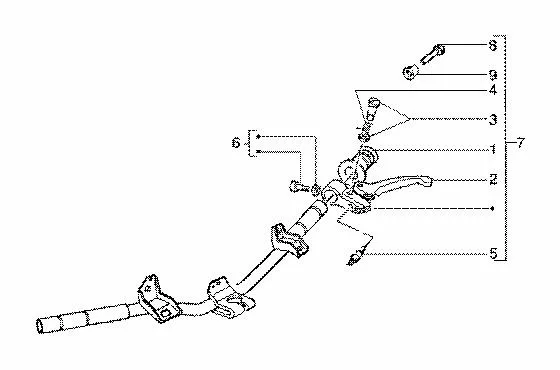

Guidon : T39 PIECES COMPOSANT LE GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/662/Runner_125_FX_2T_1998-2005_T39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/9/img/66099.jpg)
1 |
REVETEMENT DE GRIP LEFT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-271452 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/5/img/67075.jpg)
2 |
BRAKE LEVER SCOOT OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, PRIMAVERA, 50 NRG POWER LEFT (HENG-TONG)-564683 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
3 |
SCREW WITH NUT BRAKE LEVER OEM PIAGGIO COMMON A LA RANGE-265249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
4 |
SPRING DE BRAKE LEVER LEFT OEM PIAGGIO COMMON A LA RANGE WITH BRAKE TAMBOUR-267948 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
5 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
6 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/0/img/72970.jpg)
7 |
GRIP SCOOT OEM PIAGGIO 50-125 FLY 2005 >, 50-125 LIBERTY 2005 > 2008, 50-125 VESPA LX 2005 > 2008, 50 NRG 2005 >, 50 TYPHOON 2006 > (LEFT PAS A RIGHT)-CM063804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/3/6/5/img/158365.jpg)
8 |
SCREW TORX HEAD FRAISEE (6X55) HANDLEBAR END OEM PIAGGIO COMMON A TOUTE LA RANGE-1B006376 More informationQuantity required : 1 |
||||||
|
8 |
SCREW TORX HEAD FRAISEE (6X55) HANDLEBAR END OEM PIAGGIO COMMON A TOUTE LA RANGE-1B006376 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/2/7/img/77327.jpg)
9 |
HANDLEBAR END CHROME OEM PIAGGIO 125-250 X9, X8, X7, X-EVO, BEVERLY/GILERA 50-125 RUNNER-271433 More informationQuantity required : 1 |
||||||
9 |
583697-CONTRE POIDS X9/BEV125/200/500 + GT More informationQuantity required : 2 |
