Vehicle Exploded View - GILERA RUNNER 125 FX 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

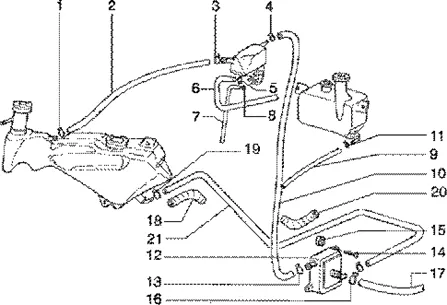

Châssis : T36 CIRCUIT D'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/662/Runner_125_FX_2T_1998-2005_T36.PNG)
1 |
CM002912-CLAMP More informationQuantity required : 2 |
|||||||||
|
2 |
CM002205 TUBE DEPRESSIONE More informationQuantity required : 1 |
|||||||||
|
3 |
CM002912-CLAMP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/1/img/66101.jpg)
4 |
CLAMP FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-271477 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
5 |
HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
6 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/9/img/109029.jpg)
7 |
TUBE DE DEPRESSION INTAKE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-1R000158 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
8 |
HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/4/3/img/73043.jpg)
9 |
HOSE/TUBE D'HUILE ENTRE TANK ET PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-CM101509 More informationQuantity required : 1 |
|||||||||
|
10 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160 More informationQuantity required : 1 |
|||||||||
|
11 |
COLLIER |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/7/1/5/img/92715.jpg)
12 |
82592R-PUMP More informationQuantity required : 1 |
|||||||||
|
13 |
COLLIER |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
14 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
15 |
RUBBER MOUNT OEM PIAGGIO COMMON A TOUTE LA RANGE MAXISCCOOTER-258904 More informationQuantity required : 1 |
|||||||||
|
16 |
HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904 More informationQuantity required : 1 |
|||||||||
|
17 |
CM001102 - TUYAU More informationQuantity required : 1 |
|||||||||
|
18 |
GAINE ESSENCE |
|||||||||
|
19 |
COLLIER |
|||||||||
|
20 |
GAINE |
|||||||||
|
21 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160 More informationQuantity required : 1 |
|||||||||
