Vehicle Exploded View - GILERA RUNNER 125 FX 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

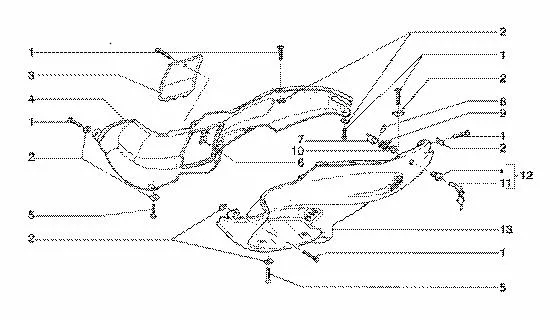

Châssis : T27 CARÉNAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/662/Runner_125_FX_2T_1998-2005_T27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
1 |
SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911 More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
1 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
2 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 8 |
|||||||||
3 |
620310 - TRAPPE VISITE More informationQuantity required : 1 |
|||||||||
|
3 |
TRAPPE VISITE RUN50/125/180 2T NOIR 197 |
|||||||||
|
3 |
6203100090-COVER BATTERY RUNNER BLACK 94 More informationQuantity required : 1 |
|||||||||
|
3 |
Abattant accès batterie |
|||||||||
|
3 |
62031000E1 - TRAPPE VISITE More informationQuantity required : 1 |
|||||||||
|
4 |
4298005 - AILE AR DROITE RUNNER BRUT More informationQuantity required : 1 |
|||||||||
|
4 |
AILE AR DROITE RUNNER CUIVRE RAME 954 |
|||||||||
|
4 |
4298005090 - AILE AR DROITE RUNNER NOIR 94 More informationQuantity required : 1 |
|||||||||
|
4 |
4298005095 - AILE AR DROITE RUNNER GRIS 729 More informationQuantity required : 1 |
|||||||||
|
4 |
42980050E1 - AILE AR DROITE RUNNER GRIS 121 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
5 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
|||||||||
|
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
|||||||||
|
7 |
576008-LEVER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/0/img/63860.jpg)
8 |
EPINGLE DE LOCK OEM PIAGGIO COMMON A LA RANGE-008808 More informationQuantity required : 1 |
|||||||||
|
9 |
465054 - RESSORT More informationQuantity required : 1 |
|||||||||
|
10 |
299387 - RESSORT More informationQuantity required : 1 |
|||||||||
|
11 |
576719 - CLE EBAUCHE RUNNER 50/125/180/200 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/4/3/img/80943.jpg)
12 |
IGNITION SWITCH/LOCK RUNNER 50/125/180/200 2005 <-576718 More informationQuantity required : 1 |
|||||||||
|
13 |
5748755 - AILE AR GAUCHE RUNNER BRUT More informationQuantity required : 1 |
|||||||||
|
13 |
5748755040 - AILE AR GAUCHE RUNNER CUIVRE 954 More informationQuantity required : 1 |
|||||||||
|
13 |
5748755042 - AILE AR GAUCHE RUNNER NOIR 197 CARBON More informationQuantity required : 1 |
|||||||||
|
13 |
5748755090 - AILE AR GAUCHE RUNNER NOIR 94 More informationQuantity required : 1 |
|||||||||
|
13 |
5748755095 - AILE AR GAUCHE RUNNER GRIS 729 More informationQuantity required : 1 |
|||||||||
|
13 |
57487550E1 - AILE AR GAUCHE RUNNER GRIS 121 More informationQuantity required : 1 |
|||||||||
|
13 |
AILE AR GAUCHE RUNNER ROUGE 883 |
|||||||||
