Vehicle Exploded View - APRILIA RSV4 1100 Factory E5 ABS 2021-22 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

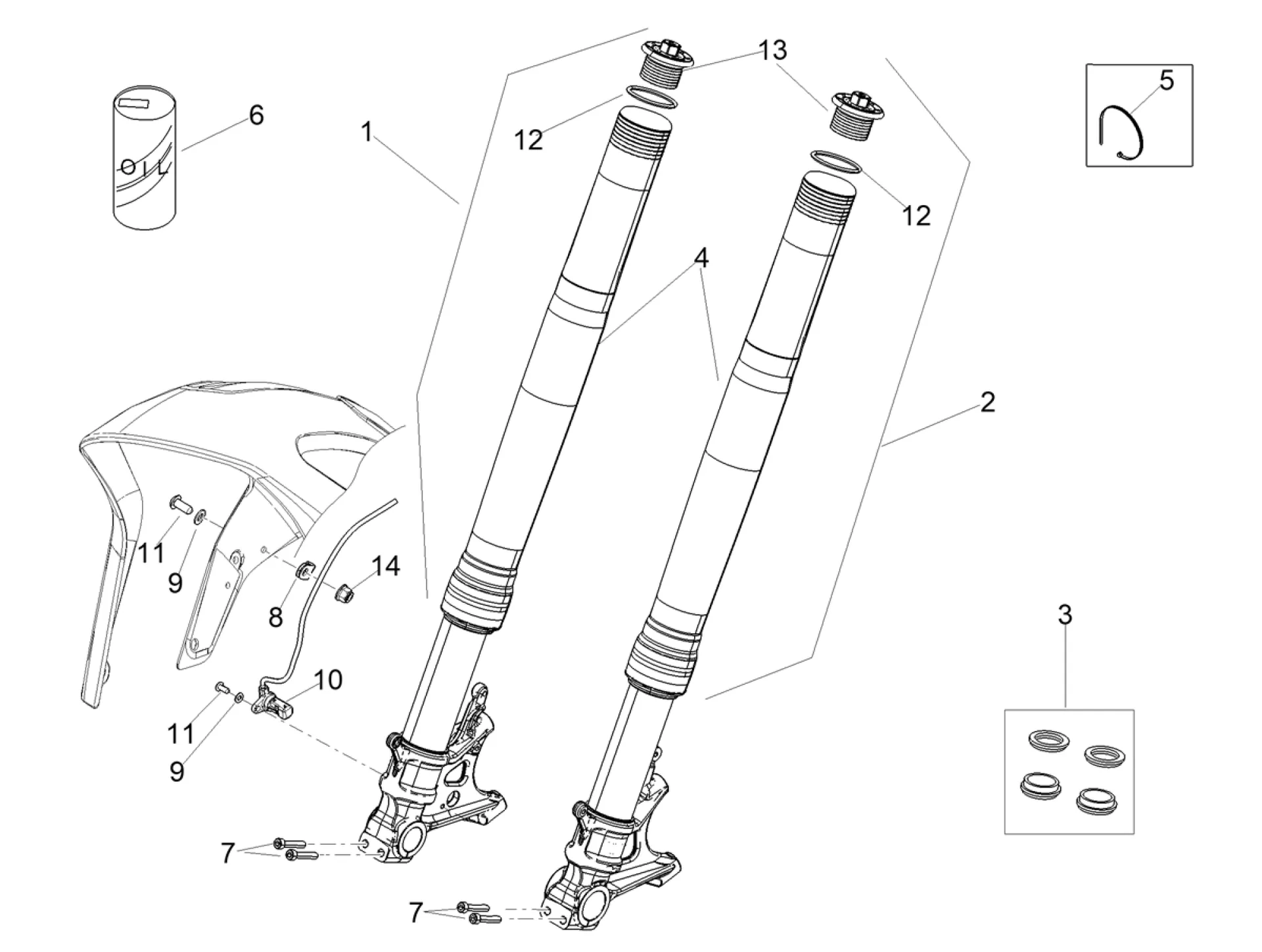

Suspensions : 04.01 FOURCHE AV. OHLINS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1160/RSV4_1100_Factory_E5_ABS_2021-22_(EMEA)_04.01.png)
1 |
2B006408-ROD RIGHT CPL. More informationQuantity required : 1 |
||||||
|
2 |
2B006409-ROD LEFT CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/4/1/img/156441.jpg)
3 |
SET OF JOINTS FORK FRONT OEM PIAGGIO APRILIA 1000-1100 RSV-2, RSV-4, TUONO V2, TUONO V4-2B006021 More informationQuantity required : 2 |
||||||
|
4 |
2B006020-FOURREAU More informationQuantity required : 2 |
||||||
|
5 |
AP8102386-FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
|
6 |
AP8116071-OIL FORK 1LT More informationQuantity required : 1 |
||||||
|
7 |
2B006022-SCREW More informationQuantity required : 1 |
||||||
|
8 |
2B008558 SCREW CABLE CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/2/img/70832.jpg)
9 |
WASHER NYLON/PLASTIQUE (D4) OEM PIAGGIO COMMON A LA RANGE-895916 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
10 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/9/7/7/img/158977.jpg)
11 |
SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-581957 More informationQuantity required : 1 |
||||||
|
12 |
2B005852-GASKET SPIE More informationQuantity required : 1 |
||||||
|
13 |
2B006695 CAP More informationQuantity required : 2 |
||||||
|
14 |
2B008790 SELF LOCK. FLANGE NUT M4 A2-70 DIN 6926 More informationQuantity required : 1 |
