Vehicle Exploded View - APRILIA RSV4 1100 Factory E5 ABS 2021-22 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

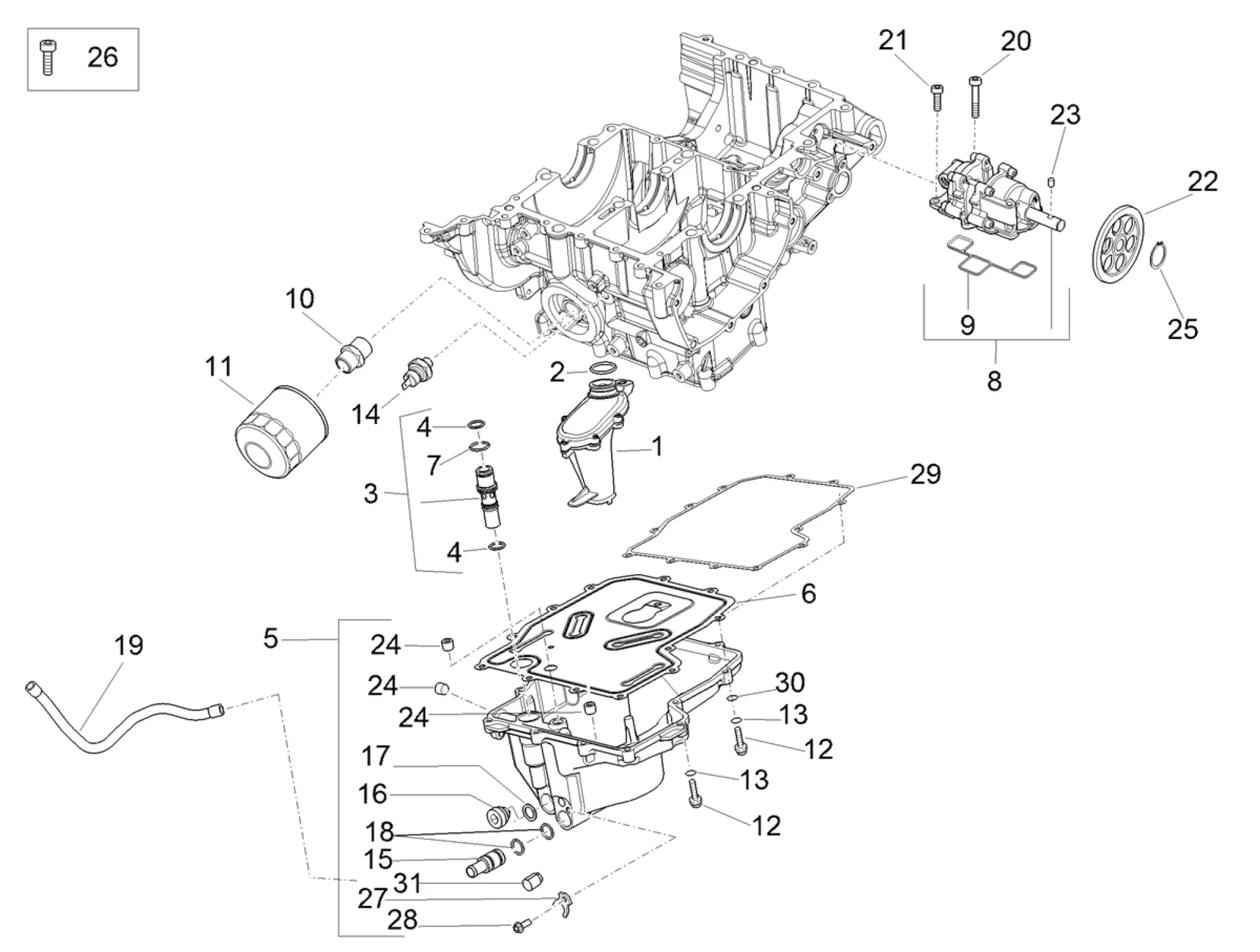

Moteur : 03.19 LUBRIFICATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1160/RSV4_1100_Factory_E5_ABS_2021-22_(EMEA)_03.19.png)
1 |
2A000595-FILTER OIL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/5/8/img/62658.jpg)
2 |
O-RING (24X2. 5) EPURATEUR OIL OEM APRILIA 1000-1100 RSV4-B046072 More informationQuantity required : 1 |
|||||||||
|
3 |
1A0144905 - OIL PRESSURE VALVE More informationQuantity required : 1 |
|||||||||
|
3 |
1A01449045-OIL PRESSURE ADJUSTING VALVE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/2/img/69752_20251023155950.jpg)
4 |
O-RING (14. 5X18X2) OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-V4, PORTER DIESEL-857176 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/3/4/img/139034.jpg)
5 |
CASING OIL OEM APRILIA 1000-1100 RSV4 2015 >-1A0063196 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/0/4/7/img/127047.jpg)
6 |
GASKET CASING OIL OEM APRILIA 1000-1100 RSV4 2015 >-2A000576 More informationQuantity required : 1 |
|||||||||
|
7 |
2A000276-BUSH D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/9/1/img/108591.jpg)
8 |
OIL PUMP OEM PIAGGIO 1000 RSV-4, 1000 TUONO 2011 >, 1100 RSV-4 2019 >, 1100 TUONO 2015 >-2A000539 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/3/2/img/40332.jpg)
9 |
GASKET OF OIL PUMP OEM APRILIA 1000-1100 RSV4 2009 >-857189 More informationQuantity required : 1 |
|||||||||
|
10 |
857168-FITTING OIL FILTER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/2/4/9/img/198249.jpg)
11 |
OIL FILTER MOTO OEM PIAGGIO APRILIA 660 RS, TUONO 2020 >, 1000 RSV-4 2011 >, 1000 TUONO V4 2011 >, 1100 TUONO 2015 >, 1100 RSV-4 2019 > RS 457 2024-1A023538 More informationQuantity required : 1 |
|||||||||
|
11 |
OIL FILTER MOTO OEM PIAGGIO APRILIA 660 RS, TUONO 2020 >, 1000 RSV-4 2011 >, 1000 TUONO V4 2011 >, 1100 TUONO 2015 >, 1100 RSV-4 2019 > RS 457 2024-1A023538 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
12 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 12 |
|||||||||
|
13 |
016335-WASHER More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
14 |
SENSOR PRESSION D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT)-1A024308R More informationQuantity required : 1 |
|||||||||
|
15 |
2A000357-TUBO OIL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/2/8/img/40328.jpg)
16 |
CAP DE VIDANGE OIL OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO-857184 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/2/2/img/40322.jpg)
17 |
GASKET OF CAP DE VIDANGE OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4-857147 More informationQuantity required : 1 |
|||||||||
|
18 |
O-RING (14. 5X18X2) OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-V4, PORTER DIESEL-857176 More informationQuantity required : 2 |
|||||||||
|
19 |
HOSE OIL OEM PIAGGIO RSV4 APRILIA 2015 >-2B001806 More informationQuantity required : 1 |
|||||||||
|
20 |
277330-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/3/img/68493.jpg)
21 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-709099 More informationQuantity required : 5 |
|||||||||
|
22 |
85273R-GEAR More informationQuantity required : 1 |
|||||||||
|
23 |
857192-ROLLER NRB 5X19, 8 More informationQuantity required : 1 |
|||||||||
|
24 |
B044718-CAP More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/2/img/63812.jpg)
25 |
CLIPS/CIRCLIPS (10. 9) OEM PIAGGIO COMMUNUN A LA RANGE-006412 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
26 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/7/7/img/108577.jpg)
27 |
2A000358-PLATE More informationQuantity required : 1 |
|||||||||
|
28 |
SCREW TBH (6X16) OEM PIAGGIO COMMON A LA RANGE APRILIA-1A003049 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/3/1/img/127131.jpg)
29 |
GASKET CASING OIL OEM PIAGGIO RSV4 APRILIA 2015 >-857452 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
30 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 8 |
|||||||||
|
31 |
2A000359-CAP More informationQuantity required : 1 |
|||||||||
