Vehicle Exploded View - APRILIA RSV4 1100 Factory E5 ABS 2021-22 (EMEA) APRILIA

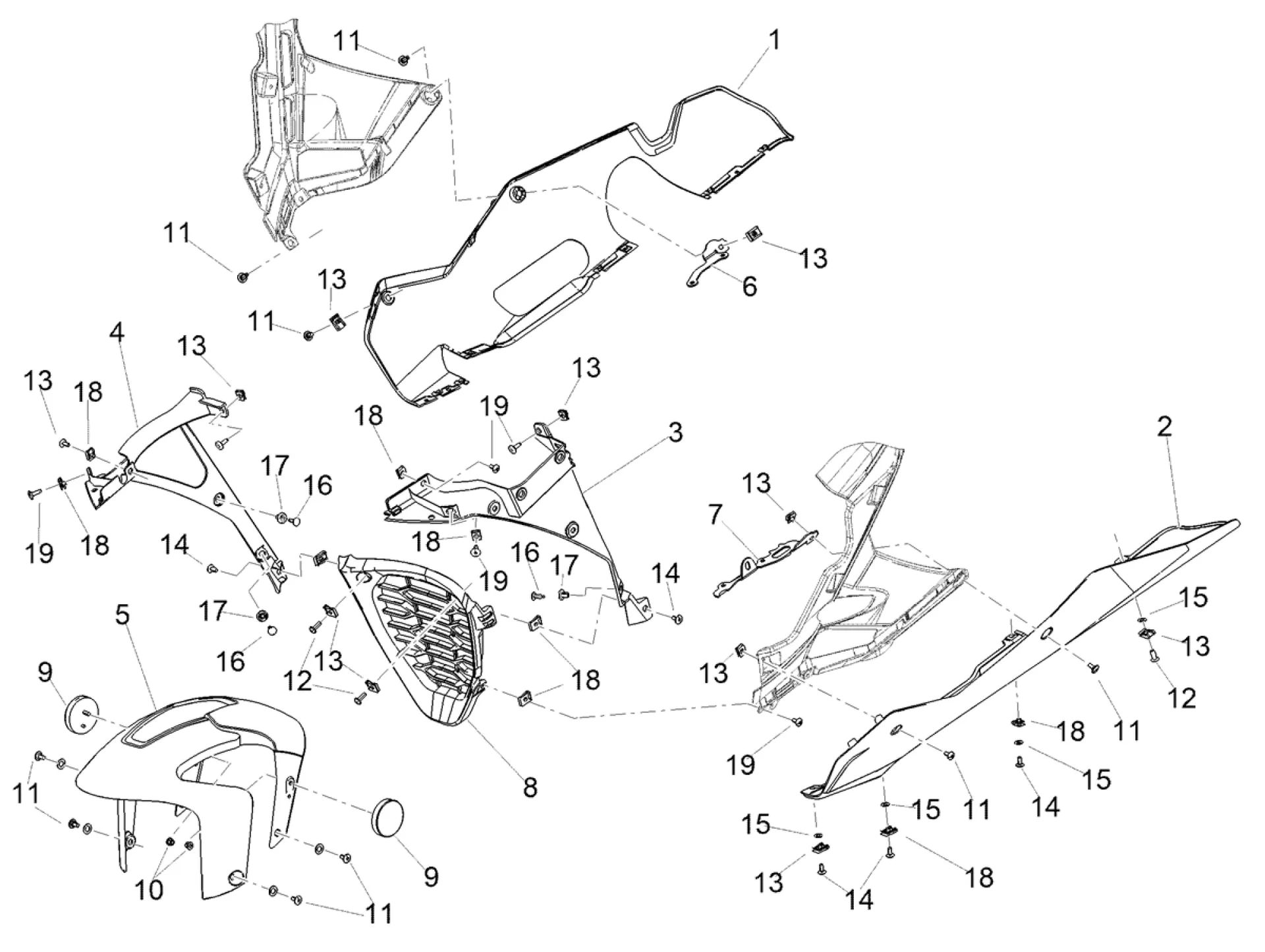

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
Garde-boue Av.-Embasement
Search
2B006971000N18 - LOWER RIGHT FAIRING

1
P2R reference P2R reference 195944
Maker reference Maker reference 2B006971000N18

2B006971000N18-LOWER RIGHT FAIRING

More information

Quantity required : 1

2B006971 - UPPER RIGHT FAIRING

1
P2R reference P2R reference 176167
Maker reference Maker reference 2B006971

2B006971 UPPER RIGHT FAIRING

More information

Quantity required : 1

2B006971000NV - UPPER RIGHT FAIRING

1
P2R reference P2R reference 176168
Maker reference Maker reference 2B006971000NV

2B006971000NV UPPER RIGHT FAIRING

More information

Quantity required : 1

2B006970000N18 - LOWER LEFT FAIRING

2
P2R reference P2R reference 195945
Maker reference Maker reference 2B006970000N18

2B006970000N18-LOWER LEFT FAIRING

More information

Quantity required : 1

2B006970 - UPPER LEFT FAIRING

2
P2R reference P2R reference 176169
Maker reference Maker reference 2B006970

2B006970 UPPER LEFT FAIRING

More information

Quantity required : 1

2B006970000NV - UPPER LEFT FAIRING

2
P2R reference P2R reference 176170
Maker reference Maker reference 2B006970000NV

2B006970000NV UPPER LEFT FAIRING

More information

Quantity required : 1

2B006974 - RH BODY SIDE

3
P2R reference P2R reference 176171
Maker reference Maker reference 2B006974

2B006974 RH BODY SIDE

More information

Quantity required : 1

2B006975 - RH BODY SIDE

4
P2R reference P2R reference 176172
Maker reference Maker reference 2B006975

2B006975 RH BODY SIDE

More information

Quantity required : 1

FRONT MUDGUARD OEM APRILIA 660-1100 RS, TUONO 2021 >-2B008635

5
P2R reference P2R reference 174799
Maker reference Maker reference 2B008635

FRONT MUDGUARD OEM APRILIA 660-1100 RS, TUONO 2021 >-2B008635

More information

Quantity required : 1

2B007578 - RH FAIRING FIXING BRACKET

6
P2R reference P2R reference 176054
Maker reference Maker reference 2B007578

2B007578 RH FAIRING FIXING BRACKET

More information

Quantity required : 4

2B007459 - LH LOWER FAIRING FIX BRACKET

7
P2R reference P2R reference 176053
Maker reference Maker reference 2B007459

2B007459 LH LOWER FAIRING FIX BRACKET

More information

Quantity required : 1

2B008016 - FRONT LOWER FAIRING

8
P2R reference P2R reference 176173
Maker reference Maker reference 2B008016

2B008016 FRONT LOWER FAIRING

More information

Quantity required : 2

CATADIOPTRE ROND AMBRE OEM PIAGGIO COMMIUN A LA RANGE-AP8224163

9
P2R reference P2R reference 72324
Maker reference Maker reference AP8224163

CATADIOPTRE ROND AMBRE OEM PIAGGIO COMMIUN A LA RANGE-AP8224163

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

10
P2R reference P2R reference 71963
Maker reference Maker reference AP8152306

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

11
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 8

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A A LA RANGE-895915

12
P2R reference P2R reference 42388
Maker reference Maker reference 895915

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A A LA RANGE-895915

More information

Quantity required : 3

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

13
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 16

SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174

14
P2R reference P2R reference 70837
Maker reference Maker reference 896174

SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174

More information

Quantity required : 3

WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622

15
P2R reference P2R reference 71410
Maker reference Maker reference AP8120622

WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622

More information

Quantity required : 3

RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563

16
P2R reference P2R reference 71769
Maker reference Maker reference AP8144563

RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563

More information

Quantity required : 6

RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616

17
P2R reference P2R reference 71773
Maker reference Maker reference AP8144616

RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616

More information

Quantity required : 6

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

18
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

More information

Quantity required : 10

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

19
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 10
