Vehicle Exploded View - APRILIA RSV4 1000 RSV 1000 4V SBK FACT 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

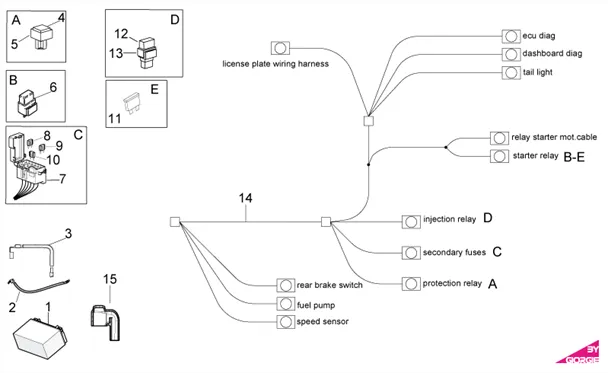

Chassis : 28.34 CIRCUIT ELECTRIQUE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/558/RSV_1000_4V_SBK_FACT_2009-2010_28.34.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/5/3/img/67853.jpg)
1 |
BATTERY 12V 12AH YT12A-BS OEM PIAGGIO COMMON A LA RANGE-639792 More informationQuantity required : 1 |
|||||||||
2 |
858869 - CABLAGE More informationQuantity required : 1 |
|||||||||
|
3 |
858871 - CABLAGE BATTERIE-RELAI More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
4 |
RELAIS INJECTION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-895481 More informationQuantity required : 1 |
|||||||||
|
5 |
896715-RUBBER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/7/img/146197.jpg)
6 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/3/img/67263.JPG)
6 |
RELAIS DE STARTER MOTOR OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 50-125 LIBERTY CORPORATE/APRILIA 1000-1100 RSV-4, TUONO V4, 900 DORSODURO, SHIVER/GILERA 500 NEXUS, FUOCO-582690 More informationQuantity required : 1 |
|||||||||
|
7 |
858212-RUBBER More informationQuantity required : 1 |
|||||||||
|
8 |
CM225605-FUSIBLE More informationQuantity required : 2 |
|||||||||
|
9 |
CM225607-FUSIBLE More informationQuantity required : 1 |
|||||||||
|
10 |
CM225615-FUSIBLE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
11 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
12 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
13 |
SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283 More informationQuantity required : 5 |
|||||||||
|
14 |
895466 - CABLAGE More informationQuantity required : 1 |
|||||||||
|
15 |
895701-CAPUCHON More informationQuantity required : 1 |
|||||||||
