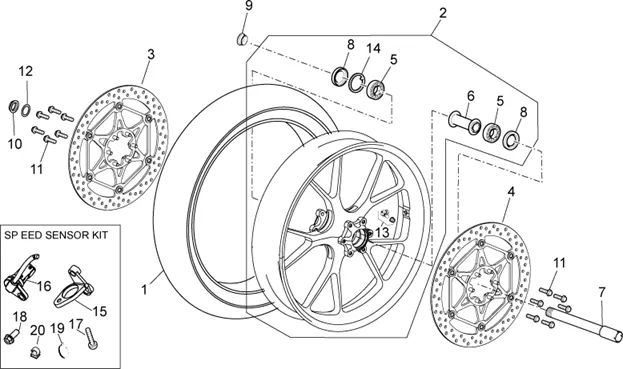

Chassis : 28.26 ROUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/558/RSV_1000_4V_SBK_FACT_2009-2010_28.26.PNG)
1 |
897596-TYRE FRONT More informationQuantity required : 1 |
||||||
|
2 |
2B011608-WHEEL AV More informationQuantity required : 1 |
||||||
|
2 |
2B011608-WHEEL AV More informationQuantity required : 1 |
||||||
|
3 |
893135-FRONT BRAKE DISC D. 320 * More informationQuantity required : 1 |
||||||
|
4 |
893136 - DISQUE FREIN AVANT D.320 More informationQuantity required : 1 |
||||||
|
5 |
BEARING (25X47X12) DE FRONT WHEEL OEM APRILIA/MOTO GUZZI-AP8110094 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/8/6/img/71586.jpg)
6 |
SPACER INTERNE DE FRONT WHEEL OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4, TUONO-AP8125843 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/4/img/69644.jpg)
7 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV, TUONO, 1200 DORSODURO, CAPONORD -85263R More informationQuantity required : 1 |
||||||
|
8 |
BUSH ETANCHEITE FRONT WHEEL (30X47X7) OEM APRILIA/MOTO GUZZI-AP8125841 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/5/img/71575.jpg)
9 |
SPACER EXTERIEURE RIGHT FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8125728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
10 |
NUT DE WHEEL OEM APRILIA COMMON A LA RANGE MOTO-AP8152335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
11 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
12 |
WASHER (25. 2X36X1) WHEEL SPINDLE FRONT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/7/img/71237.jpg)
13 |
VALVE TUBELESS COUDEE 90- OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8104728 More informationQuantity required : 1 |
||||||
|
14 |
CLIPS/CIRCLIPS OEM APRILIA (D47) COMMON A LA RANGE-AP8125842 More informationQuantity required : 1 |
||||||
|
15 |
Support détecteur |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
16 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
16 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/6/img/71916.jpg)
17 |
SCREW BTR HEAD BOMBEE (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152136 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
18 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
19 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
20 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8201727 More informationQuantity required : 1 |
