Vehicle Exploded View - APRILIA RSV4 1000 RSV 1000 4V SBK FACT 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

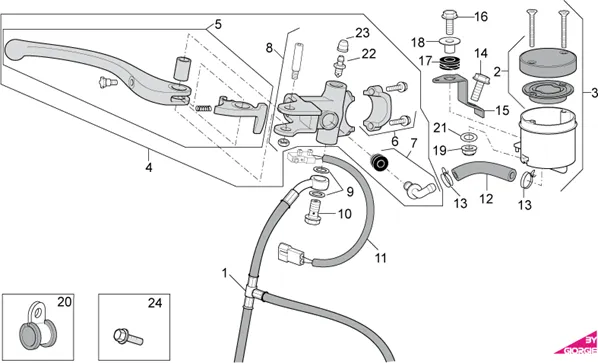

Chassis : 28.20 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/558/RSV_1000_4V_SBK_FACT_2009-2010_28.20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/3/8/img/40638.jpg)
1 |
HOSE/FLEXIBLE/HOSE OF BRAKE FRONT OEM PIAGGIO APRILIA 1000 RSV-4-858898 More informationQuantity required : 1 |
||||||
2 |
AP8113598-CAP RES. OIL FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/1/img/71301.JPG)
3 |
BOCAL/TANK OF BRAKE FRONT OEM PIAGGIO APRILIA 1000 RSV, TUONO, FALCO, FUTURA, 750-1200 DORSODURO, 1200 CAPONORD-AP8113499 More informationQuantity required : 1 |
||||||
|
4 |
890791 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/7/1/img/176071.jpg)
5 |
BRAKE LEVER RIGHT OEM PIAGGIO APRILA RSV2, RSV4 2009 > 2016, RSV4 2021 >, 660 RS 2020 > 2022-2B007071 More informationQuantity required : 1 |
||||||
|
5 |
BRAKE LEVER RIGHT OEM PIAGGIO APRILA RSV2, RSV4 2009 > 2016, RSV4 2021 >, 660 RS 2020 > 2022-2B007071 More informationQuantity required : 1 |
||||||
|
6 |
893937-CAVALIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.jpg)
7 |
FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/6/1/img/71661.jpg)
8 |
STUD BRAKE MASTER CYLINDER OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4, 1100 TUONO-AP8133666 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
|
10 |
2B001983-SCREW HOSE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/9/9/img/71599.jpg)
11 |
CONTACTEUR DE STOP OEM APRILIA 1000 RSV4 2009 < 2016-AP8127432 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
12 |
HOSE OIL DE BOCAL OF BRAKE OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-890509 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
13 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
14 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
|
15 |
AP8134383-PLAQ. RESERV. OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
16 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
17 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
18 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 1 |
||||||
|
19 |
AP8150474-NUT BORGNE INOX More informationQuantity required : 1 |
||||||
|
20 |
AP8134167-PLATE HOSE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
21 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 1 |
||||||
|
22 |
AP8133502-PURGE AIR More informationQuantity required : 1 |
||||||
|
23 |
AP8113230-CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
24 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
