Vehicle Exploded View - APRILIA RSV4 1000 RSV 1000 4V R 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

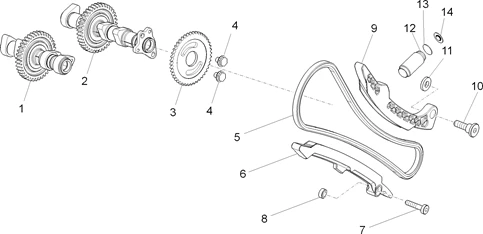

Moteur : 29.44 DISTRIBUTION CYLINDRE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/557/RSV_1000_4V_R_2009-2010_29.44.PNG)
1 |
8574705 - ARBRE A CAMES More informationQuantity required : 1 |
||||||
|
2 |
2A0000055-CAMSHAFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/5/4/img/40254.jpg)
3 |
COURONNE TIMING Z44 (EP 4. 95) OEM APRILIA 1000 RSV 2009 > 2014-857009 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/0/8/7/img/151087.jpg)
4 |
SCREW FLANGE TH (8X10, 3) OEM PIAGGIO COMMON A LA RANGE-1A003151 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/9/0/img/40290.jpg)
5 |
CHAIN DE TIMING (8, 25X5, 10) OEM PIAGGIO APRILIA 1000 RSV-4 2011, TUONO V4 2011 >-857097 More informationQuantity required : 1 |
||||||
|
6 |
897573 - PATIN More informationQuantity required : 1 |
||||||
|
7 |
857476 - VIS SPECIALE More informationQuantity required : 1 |
||||||
|
8 |
857477-BUSH More informationQuantity required : 1 |
||||||
|
9 |
PATIN TENDEUR DE CHAIN DE TIMING OEM APRILIA 1000 RSV4 2009 > 2012-857099 More informationQuantity required : 1 |
||||||
|
10 |
857094-SCREW SPECIALE M16X1 More informationQuantity required : 1 |
||||||
|
11 |
857096-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/6/1/img/108561.jpg)
12 |
TENDEUR HYDRAULIQUE DE CHAIN DE TIMING OEM PIAGGIO APRILIA 1000 RSV-4 2011 >, 1000 TUONO 2011 >, 1100 RSV-4 2019 >, 1100 TUONO 2015 >, 660 RSV, 660 TUONO 2021 >-2A000111 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/2/img/69752_20251023155950.jpg)
13 |
O-RING (14. 5X18X2) OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-V4, PORTER DIESEL-857176 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/7/9/img/62579.jpg)
14 |
WASHER TENDEUR CHAIN DE TIMING (15X6X2) OEM PIAGGIO APRILIA 1000 RSV, TUONO-B045476 More informationQuantity required : 1 |
