Vehicle Exploded View - APRILIA RSV4 1000 RSV 1000 4V R 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

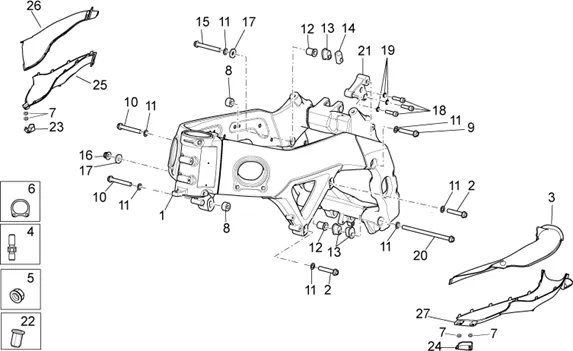

Chassis : 28.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/557/RSV_1000_4V_R_2009-2010_28.01.PNG)
1 |
858792 - CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/4/img/67364.jpg)
2 |
SCREW FLANGE TH (10X50) OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 2 |
||||||
|
3 |
CONDUITE AIR LEFT SUPERIEURE OEM PIAGGIO APRILIA 1000-1100 RSV-4-2B001921 More informationQuantity required : 1 |
||||||
|
4 |
2B004831-PIVOT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/0/5/img/50905.jpg)
5 |
NUT FLANGE (D6) OEM PIAGGIO COMMON A LA RANGE-AP8150506 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/6/7/img/40567.jpg)
6 |
GASKET PRISE AIR OEM APRILIA 1000-1100 RSV4 2009 >-858819 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
7 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 4 |
||||||
|
8 |
858718-SPACER More informationQuantity required : 2 |
||||||
|
9 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/7/6/img/42376.jpg)
10 |
SCREW FLANGE TH (10X65) OEM PIAGGIO COMMON A LA RANGE-895845 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
11 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 7 |
||||||
|
12 |
858710-BUSH DE REGLAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/2/6/img/40526.jpg)
13 |
INSERT OEM MOPED SWINGARM POS. + 5 OEM APRILIA 1000-1100 RSV4 2009 >-858714 More informationQuantity required : 3 |
||||||
|
14 |
858711-INSERT More informationQuantity required : 1 |
||||||
|
15 |
AP8152398-SCREW FLANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/1/8/img/51018.jpg)
17 |
WASHER PLATE (10, 5X25X4) OEM PIAGGIO COMMON A LA RANGE-AP8152441 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
18 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107 More informationQuantity required : 3 |
||||||
|
19 |
WASHER CANNELEE (8. 4X13) OEM PIAGGIO COMMON A LA RANGE-AP8152154 More informationQuantity required : 3 |
||||||
|
20 |
858712-PIVOT More informationQuantity required : 1 |
||||||
|
21 |
856696-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/5/img/71205.jpg)
22 |
INSERT FILETEE ON FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-AP8102902 More informationQuantity required : 4 |
||||||
|
23 |
858925-BRACKET CONDUITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/5/1/img/40651.jpg)
24 |
BRACKET LOWER LEFT DE DUCT OEM APRILIA 1000 RSV4 2009 >-858926 More informationQuantity required : 1 |
||||||
|
25 |
CONDUITE AIR RIGHT INFERIEURE OEM PIAGGIO APRILIA 1000-1100 RSV-4-858907 More informationQuantity required : 1 |
||||||
|
26 |
AIR DUCT - UPPER RIGHT "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4 -858815- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/6/6/img/40566.jpg)
27 |
AIR DUCT - LOWER LEFT "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4 -858818- More informationQuantity required : 1 |
