Vehicle Exploded View - APRILIA RSV4 1000 RSV 1000 4V R 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

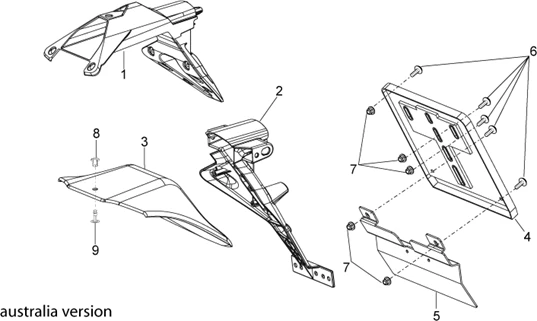

Chassis : 28.58 CARROSSERIE POSTERIEURE III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/557/RSV_1000_4V_R_2009-2010_28.58.PNG)
1 |
REAR MUDGUARD OEM PIAGGIO APRILIA 50-125 RS 2011 >, TUONO, 1000 RSV-4, TUONO V4, 1200 CAPONORD-858840 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/0/6/img/40606.jpg)
2 |
MUD FLAP REAR OEM PIAGGIO APRILIA 50-125 RS 2011 >, TUONO, 1000 RSV-4, TUONO V4, 1200 CAPONORD-858842 More informationQuantity required : 1 |
||||||
|
3 |
895487-GUARD-MUD REAR More informationQuantity required : 1 |
||||||
|
4 |
895914-DOOR-PLATE More informationQuantity required : 1 |
||||||
|
5 |
895488-GUARD-MUD REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
6 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
8 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
9 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 1 |
