Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

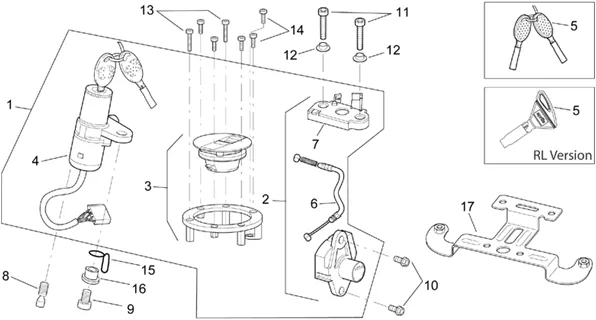

Chassis : 28.59 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/315/RSV_1000_2003_28.59.PNG)
1 |
AP8104263 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
1 |
AP8104265 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
1 |
AP8104623 - KIT SERRATURE More informationQuantity required : 1 |
||||||
|
1 |
AP8104151 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
2 |
AP8102911-LOCK SEAT CPL. More informationQuantity required : 1 |
||||||
|
3 |
AP8104287-CAP FUEL TANK More informationQuantity required : 1 |
||||||
|
3 |
AP8104288-CAP FUEL TANK More informationQuantity required : 1 |
||||||
|
4 |
AP8104941-BLOCCHETTO AVVIAMENTO-BLOCC. More informationQuantity required : 1 |
||||||
|
4 |
AP8102910 - BLOC DEMARREUR-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/5/img/97075.jpg)
5 |
EBAUCHE DE CLE OEM PIAGGIO APRILIA 50-125 RS, SX, RX-AP8140710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
5 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
|
6 |
AP8102914-CABLE LOCK More informationQuantity required : 1 |
||||||
|
7 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
8 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
|
8 |
AP8150507 - VIS A ARRACHEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
9 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
10 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
11 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
11 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/7/img/57007.jpg)
12 |
BUSH OEM PIAGGIO COMMON A LA RANGE-AP8221129 More informationQuantity required : 2 |
||||||
|
13 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-AP8150453 More informationQuantity required : 3 |
||||||
|
14 |
AP8150454-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.jpg)
15 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120428 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/1/7/img/46917.jpg)
16 |
AP8121678 - DOUILLE More informationQuantity required : 1 |
||||||
|
17 |
AP8134608 - SUPPORT SERRURE SELLE; More informationQuantity required : 1 |
