Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

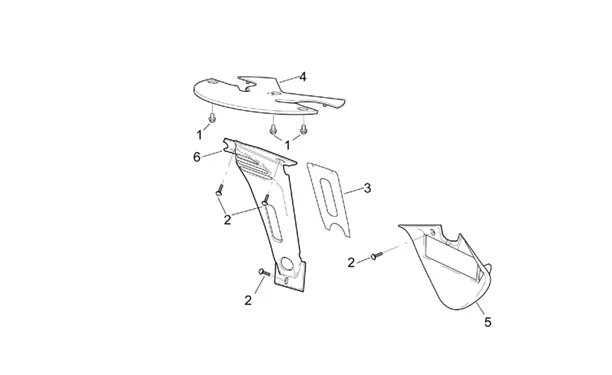

Chassis : 28.22 CARR.AV.- FERMETURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/315/RSV_1000_2003_28.22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
1 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
2 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 5 |
||||||
3 |
AP8117129-PANN. THERM. SPOILER More informationQuantity required : 1 |
||||||
|
4 |
AP8148551-LATCH INF. FRONT. CAR. More informationQuantity required : 1 |
||||||
|
5 |
Emb.carène v.hot; |
||||||
|
5 |
Emb.Carène noire; |
||||||
|
5 |
AP8168425 - EMB.CARENE JAUNE; More informationQuantity required : 1 |
||||||
|
5 |
Emb.Carène noire; |
||||||
|
5 |
AP8168453 - EMB.CARENE V.GRIS P.; More informationQuantity required : 1 |
||||||
|
6 |
AP8148834-SPOILER RADIATOR BLACK More informationQuantity required : 1 |
