Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

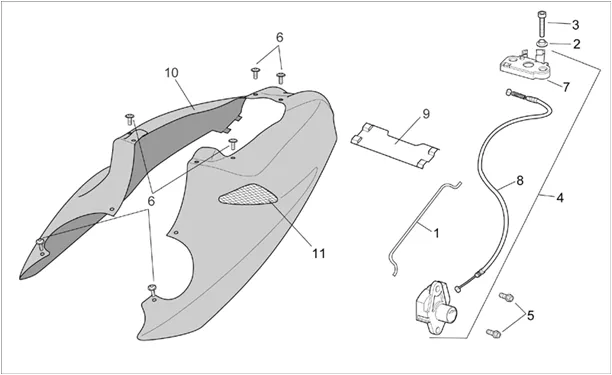

Chassis : 28.30 CARR. ARRIÉRE - QU.CAR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/315/RSV_1000_2003_28.30.PNG)
1 |
AP8134396-ROD SUPP. TANK More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/7/img/57007.jpg)
2 |
BUSH OEM PIAGGIO COMMON A LA RANGE-AP8221129 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
3 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 2 |
|||||||||
|
4 |
AP8102911-LOCK SEAT CPL. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
5 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
6 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 10 |
|||||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 10 |
|||||||||
|
7 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
|||||||||
|
8 |
AP8102914-CABLE LOCK More informationQuantity required : 1 |
|||||||||
|
9 |
Fermeture queue, noir; |
|||||||||
|
9 |
Fermeture queue, noir |
|||||||||
|
10 |
AP8168109 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8168426 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8168440 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
10 |
Queue, noir; |
|||||||||
|
10 |
AP8168470 - QUEUE, NOIR; More informationQuantity required : 1 |
|||||||||
|
10 |
AP8168903 - CODONE V.NERO A. More informationQuantity required : 1 |
|||||||||
|
11 |
AP8168112 - GRILLE PRISE AIR; More informationQuantity required : 2 |
|||||||||
