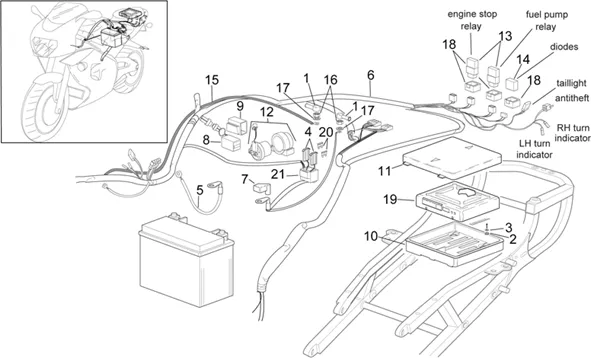

Chassis : 28.50 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/744/RSV_1000_2000_28.50.PNG)
1 |
AP8120218-CAPUCHON BORNE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
2 |
RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.jpg)
3 |
WASHER 4X16 OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150159 More informationQuantity required : 3 |
||||||
|
4 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 2 |
||||||
|
5 |
AP8124439 - CABLAGE MASSE-BATTERIE More informationQuantity required : 1 |
||||||
|
6 |
AP8127022 - CABLAGE PRINCIPAL; More informationQuantity required : 1 |
||||||
|
6 |
Câblage principal; |
||||||
|
7 |
CAPUCHON POLE POSITIF BATTERY OEM PIAGGIO COMMON A LA RANGE-AP8112940 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.jpg)
8 |
SENSOR DE CHUTE/CAPEUR ANTI-BASCULEMEMENT OEM PIAGGIO COMMON A LA RANGE-584509 More informationQuantity required : 1 |
||||||
|
9 |
AP8144046 - CAOUTCHOUC DETECT. INCL. More informationQuantity required : 1 |
||||||
|
10 |
AP8138776 - BO?TE PROT.CENTRALE; More informationQuantity required : 1 |
||||||
|
11 |
AP8138596-COUV. BO? TE CENTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/0/img/71280.jpg)
12 |
RELAIS DE STARTER MOTOR OEM PIAGGIO APRILIA 750 SHIVER, DORSODURO, 1000 RSV-2, TUONO V2, CAPONORD, 650 PEGASSO, 125-250-500 ATLANTIC, SCARABEO, 125 LEONADO, 850 MANA-AP81129276 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
13 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 2 |
||||||
|
14 |
AP8124289 - DIODES More informationQuantity required : 1 |
||||||
|
15 |
AP8124935-CABLE STARTER: 8124269 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
16 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
17 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
18 |
SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283 More informationQuantity required : 3 |
||||||
|
19 |
Centrale |
||||||
|
19 |
Centrale |
||||||
|
19 |
Centrale |
||||||
|
20 |
Fusible |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/7/img/71277.jpg)
21 |
RUBBER DOOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE-AP8112811 More informationQuantity required : 1 |
