Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

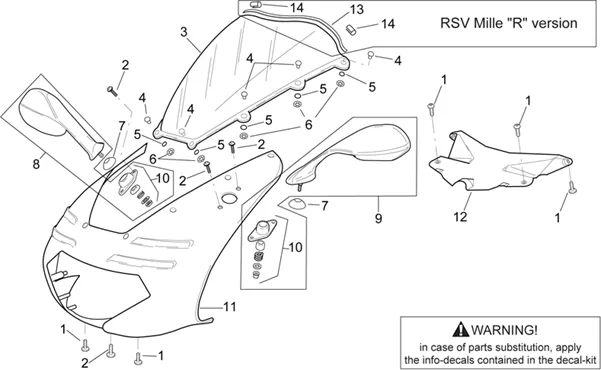

Chassis : 28.11 CARROSSERIE AV. - COUPOLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/744/RSV_1000_2000_28.11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
1 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
2 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 5 |
||||||
3 |
Vitre coupole; |
||||||
|
3 |
Vitre coupole; |
||||||
|
3 |
AP8139517 - VITRE COUPOLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/0/img/71750.jpg)
4 |
RIVET MOUNTING FAIRING OEM PIAGGIO APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO-AP8144109 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
5 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
6 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/5/1/img/45151.jpg)
7 |
CUVETTE ARTICULATION MIRROR OEM PIAGGIO 50-125-250 RS APRILIA 1999 >-AP8102341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/9/7/img/45197.jpg)
8 |
RIGHT MIRROR OEM PIAGGIO 50-125-250 RS 1999 > 2010, 1000 RSV-2 2000 > 2003, FALCO 2000 > 2003-AP8102632 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/9/8/img/45198.jpg)
9 |
LEFT MIRROR OEM PIAGGIO 50-125-250 RS 1999 > 2010, 1000 RSV-2 2000 > 2003, FALCO 2000 > 2003-AP8102633 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/5/2/img/45252.jpg)
10 |
KIT MONTAGE MIRROR OEM PIAGGIO 50-125-250 RS 2000 >-AP8102909 More informationQuantity required : 2 |
||||||
|
11 |
AP8148524 - DEV.CARENE P.NOIR AP.; More informationQuantity required : 1 |
||||||
|
11 |
AP8148552 - DEVANT CARENE NOIR/BLANC; More informationQuantity required : 1 |
||||||
|
11 |
Dev.carène p.hot red; |
||||||
|
11 |
Dev.carène p.bl.él.; |
||||||
|
11 |
Dev.carène p.jaune f.; |
||||||
|
12 |
Fermeture bulle-tabl. bord; |
||||||
|
12 |
Fermeture bulle-tabl. bord; |
||||||
|
13 |
AP8144281-GASKET More informationQuantity required : 1 |
||||||
|
14 |
AP8106712-CLAMP More informationQuantity required : 2 |
