Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

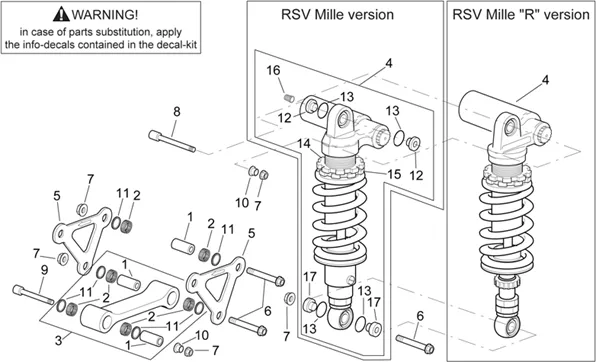

Chassis : 28.10 BIELLETTE ET DER. AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/744/RSV_1000_2000_28.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/1/9/img/71719.jpg)
1 |
BUSH/SPACER (10) L40 OEM PIAGGIO COMMON A LA RANGE-AP8135924 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/3/img/45823.jpg)
2 |
CAGE A AIGUILLE ARTICULATION ARM SUSPENSION OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4, TUONO, FUTURA, 125 RX, SX-AP8110065 More informationQuantity required : 6 |
||||||
3 |
AP8146680 - BIELLA SINGOLA More informationQuantity required : 1 |
||||||
|
4 |
AP8123939 - AMORTISSEUR; More informationQuantity required : 1 |
||||||
|
4 |
Amortisseur |
||||||
|
5 |
AP8135916 - DOUBLE BIELLETTE; More informationQuantity required : 2 |
||||||
|
6 |
AP8152322 - VIS BRIDE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 5 |
||||||
|
8 |
AP8150458-SCREW More informationQuantity required : 1 |
||||||
|
9 |
AP8150457 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/9/img/71439.jpg)
10 |
BUSH EN T (D10) OEM PIAGGIO COMMON A LA RANGE-AP8121155 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/0/img/71270.jpg)
11 |
OIL SEAL (18X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8110068 More informationQuantity required : 6 |
||||||
|
12 |
AP8123859 - "DOUILLE EN ""T"""; More informationQuantity required : 2 |
||||||
|
13 |
AP8123860-O-RING More informationQuantity required : 4 |
||||||
|
14 |
Contre-bague; |
||||||
|
15 |
Bague; |
||||||
|
16 |
Bouchon; |
||||||
|
17 |
AP8123870 - "DOUILLE EN ""T"""; More informationQuantity required : 2 |
