Vehicle Exploded View - APRILIA RS 660 Extrema 4T 8V E5 ABS 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

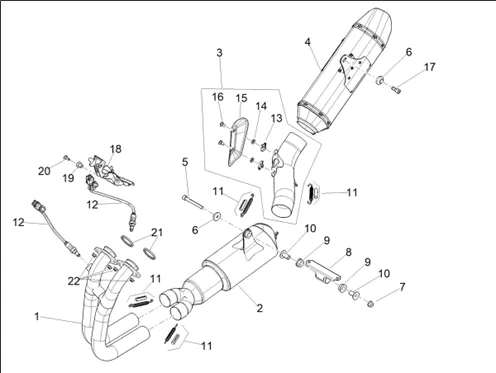

Moteur : 03.33 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1202/RS_660_Extrema_4T_8V_E5_ABS_2023_(EMEA)_03.33.png)
1 |
2B011252-MANIFOLD D'Ã - CHAPPEMENT D. More informationQuantity required : 1 |
||||||
|
2 |
2B011251-MANIFOLD Ã - CHAP. CENTRAL More informationQuantity required : 1 |
||||||
|
3 |
2B011255-MANIFOLD D'Ã - CHAPPEMENT COMPL. More informationQuantity required : 1 |
||||||
|
4 |
2B011249-SILENCER More informationQuantity required : 1 |
||||||
|
5 |
AP8152073-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
6 |
BUSH/WASHER CREUSE MOUNTING SILENCER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134378 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/5/img/70925.jpg)
7 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-967363 More informationQuantity required : 1 |
||||||
|
8 |
2B006844 FLANGE More informationQuantity required : 1 |
||||||
|
9 |
2B006742 GROMMET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/5/1/img/46851.jpg)
10 |
BUSH EN T (D8) OEM PIAGGIO COMMON A LA RANGE-AP8121509 More informationQuantity required : 2 |
||||||
|
11 |
2B011290-RESS. TUYAUX Ã - CHAP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/6/1/5/img/171615.jpg)
12 |
SONDE LAMBDA OEM PIAGGIO APRILIA, MOTO GUZZI, PIAGGIO, VESPA EURO5-1A014335 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
14 |
2B011259-BUSH More informationQuantity required : 2 |
||||||
|
15 |
2B011254-THERMAL PROTECTOR More informationQuantity required : 1 |
||||||
|
16 |
2B011260-MROUNDED HEAD WITH HEXAGON SOCKET M6X12 More informationQuantity required : 1 |
||||||
|
17 |
2B006180-SCREW TCEI M8X20 PRÃ -ENDUITE More informationQuantity required : 1 |
||||||
|
18 |
2B008186 ELECTRIC DEVICE BRACKET More informationQuantity required : 1 |
||||||
|
19 |
2B007076 HEXAGONAL BUSH DOUBLE THREAD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
20 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/2/8/5/img/214285.jpg)
21 |
GASKET EXHAUST EN SORTIE DE CYLINDER HEAD OEM PIAGGIO APRILIA 1000-1100 RSV-4 2011 >, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9-2B012220 More informationQuantity required : 2 |
||||||
|
21 |
GASKET EXHAUST EN SORTIE DE CYLINDER HEAD OEM PIAGGIO APRILIA 1000-1100 RSV-4 2011 >, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9-2B012220 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
22 |
NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947 More informationQuantity required : 4 |
