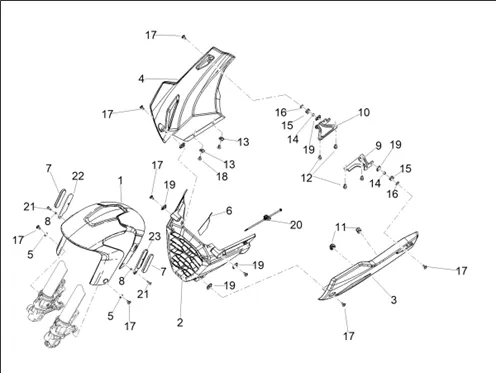

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1202/RS_660_Extrema_4T_8V_E5_ABS_2023_(EMEA)_02.03.png)
1 |
2S001815-CARBON FRONT MUDGUARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/3/1/0/img/178310.jpg)
2 |
LATCH DE FAIRING INFERIEURE OEM APRILIA 660 RS 2020 >-2B006625 More informationQuantity required : 1 |
||||||
|
3 |
2B011209-CARÃ - NAGE INFÃ - RIEUR LEFT More informationQuantity required : 1 |
||||||
|
4 |
2B011208-CARÃ - NAGE INFÃ - RIEUR RIGHT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
5 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 4 |
||||||
|
6 |
2B008296 FAIRING TIP HEAT PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/0/2/img/57502.jpg)
7 |
CATADIOPTRE OEM PIAGGIO COMMON A LA RANGE-AP8224623 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.jpg)
8 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253 More informationQuantity required : 2 |
||||||
|
9 |
2B005547 FLANGE LEFT More informationQuantity required : 1 |
||||||
|
10 |
2B005548 FLANGE RIGHT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
11 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
12 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
13 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
14 |
BUSH/BUSH (5. 3X8X7. 1) OEM PIAGGIO COMMON A LA RANGE-AP8221036 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
15 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/7/img/69207.jpg)
16 |
WASHER PLATE (6X18) OEM PIAGGIO COMMON A LA RANGE-841821 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
17 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/4/4/3/img/42443.jpg)
18 |
SCREW BTR (5X12) OEM APRILIA 660 RS/1000-1100 RSV4 2020 <-896175 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
19 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
|
20 |
1D002265 CLAMP More informationQuantity required : 1 |
||||||
|
21 |
2B003307-SCREW More informationQuantity required : 2 |
||||||
|
22 |
2B011441-BRACKET CATADIOPTRE D. More informationQuantity required : 1 |
||||||
|
23 |
2B011442-BRACKET CATADIOPTRE G. More informationQuantity required : 1 |
