Vehicle Exploded View - APRILIA RS 660 Extrema 4T 8V E5 ABS 2023 (EMEA) APRILIA

Moteur : 03.10 CULASSE - SOUPAPES

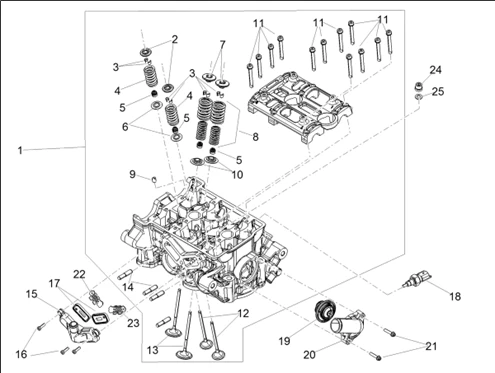

Culasse - soupapes
Search
1A025000 - TETE CYLINDRE

1
P2R reference P2R reference 215776
Maker reference Maker reference 1A025000

1A025000-HEAD CYLINDER

More information

Quantity required : 1

1A025000 - TETE CYLINDRE

1
P2R reference P2R reference 215776
Maker reference Maker reference 1A020163

1A025000-HEAD CYLINDER

More information

Quantity required : 1

1A020955 - EXHAUST UPPER CUP

2
P2R reference P2R reference 178386
Maker reference Maker reference 1A020955

1A020955 EXHAUST UPPER CUP

More information

Quantity required : 4

1A016663 - HALF-CONE

3
P2R reference P2R reference 171563
Maker reference Maker reference 1A016663
Replaced by référence Replaced by référence 208513

1A016663 - HALF-CONE

More information

Quantity required : 16

SPRING VALVE EXHAUST OEM APRILIA 660 RS/TUAREG/TUONO-857030

4
P2R reference P2R reference 40265
Maker reference Maker reference 857030

SPRING VALVE EXHAUST OEM APRILIA 660 RS/TUAREG/TUONO-857030

More information

Quantity required : 4

GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438

5
P2R reference P2R reference 66493
Maker reference Maker reference 436438

GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438

More information

Quantity required : 8

1A016658 - BOTTOM CUP

6
P2R reference P2R reference 171565
Maker reference Maker reference 1A016658

1A016658 BOTTOM CUP

More information

Quantity required : 4

1A016656 - UPPER CUP

7
P2R reference P2R reference 171566
Maker reference Maker reference 1A016656

1A016656 UPPER CUP

More information

Quantity required : 4

KIT SPRING VALVE INTAKE OEM PIAGGIO APRILIA 1000-1100 RSV-4 2017 >-1A008432

8
P2R reference P2R reference 145495
Maker reference Maker reference 1A008432

KIT SPRING VALVE INTAKE OEM PIAGGIO APRILIA 1000-1100 RSV-4 2017 >-1A008432

More information

Quantity required : 4

1A013954 - CALIBRATED DOWEL

9
P2R reference P2R reference 171567
Maker reference Maker reference 1A013954

1A013954 CALIBRATED DOWEL

More information

Quantity required : 1

1A016657 - BOTTOM CUP

10
P2R reference P2R reference 171568
Maker reference Maker reference 1A016657

1A016657 BOTTOM CUP

More information

Quantity required : 4

1A016762 - SCREW

11
P2R reference P2R reference 171569
Maker reference Maker reference 1A016762

1A016762 SCREW

More information

Quantity required : 12

1A016659 - EXHAUST VALVE

12
P2R reference P2R reference 171570
Maker reference Maker reference 1A016659

1A016659 EXHAUST VALVE

More information

Quantity required : 4

1A013958 - INTAKE VALVE

13
P2R reference P2R reference 171571
Maker reference Maker reference 1A013958

VALVE INTAKE OEM APRILIA RS 660/TUONO 660/TUAREG 660-1A013958

More information

Quantity required : 4

857035 - GOUJON

14
P2R reference P2R reference 40266
Maker reference Maker reference 857035

857035-STUD

More information

Quantity required : 4

COVER MEMBRANE AIR OEM APRILIA 1000-1100 RSV4, TUONO/660 RS, TUONO 2020 >-857044

15
P2R reference P2R reference 40269
Maker reference Maker reference 857044

COVER MEMBRANE AIR OEM APRILIA 1000-1100 RSV4, TUONO/660 RS, TUONO 2020 >-857044

More information

Quantity required : 1

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8150280

16
P2R reference P2R reference 71850
Maker reference Maker reference AP8150280

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8150280

More information

Quantity required : 3

MEMBRANE AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO-GUZZI-857045

17
P2R reference P2R reference 40270
Maker reference Maker reference 857045

MEMBRANE AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO-GUZZI-857045

More information

Quantity required : 2

SONDE TEMPERATURE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER/GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >-1A021287R

18
P2R reference P2R reference 67880
Maker reference Maker reference 1A021287R

SONDE TEMPERATURE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER/GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >-1A021287R

More information

Quantity required : 1

THERMOSTAT OEM PIAGGIO PORTER D120 2010 > 2015/660 RS, TUONO, TUAREG 2020 >-888775

19
P2R reference P2R reference 119188
Maker reference Maker reference 888775

THERMOSTAT OEM PIAGGIO PORTER D120 2010 > 2015/660 RS, TUONO, TUAREG 2020 >-888775

More information

Quantity required : 1

1A012325 - COUVERCLE THERMOSTAT

20
P2R reference P2R reference 174890
Maker reference Maker reference 1A012325

1A012325 COVER THERMOSTAT

More information

Quantity required : 1

SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799

21
P2R reference P2R reference 69697
Maker reference Maker reference 855799

SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799

More information

Quantity required : 2

857047 - PLAQUETTE;

22
P2R reference P2R reference 40272
Maker reference Maker reference 857047

857047-PLATE

More information

Quantity required : 1

857046 - PLAQUETTE

23
P2R reference P2R reference 40271
Maker reference Maker reference 857046

857046-PLATE

More information

Quantity required : 1

NUT FLANGE (10X100) OEM PIAGGIO COMMUNU A LA RANGE-897434

24
P2R reference P2R reference 42756
Maker reference Maker reference 897434

NUT FLANGE (10X100) OEM PIAGGIO COMMUNU A LA RANGE-897434

More information

Quantity required : 6

WASHER PLATE (10, 5X19X1. 6) OEM PIAGGIO COMUN A LA RANGE-857208

25
P2R reference P2R reference 40338
Maker reference Maker reference 857208

WASHER PLATE (10, 5X19X1. 6) OEM PIAGGIO COMUN A LA RANGE-857208

More information

Quantity required : 6
