Vehicle Exploded View - APRILIA RS 660 4T E5+2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

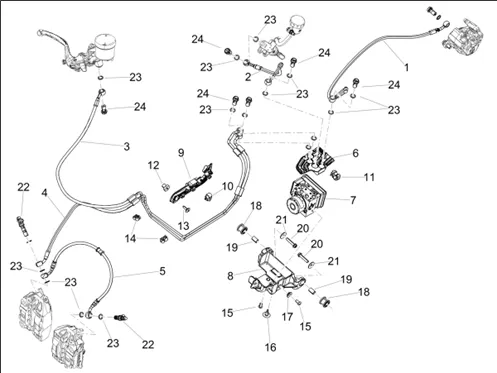

Système de freinage : 06.05 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1280/RS_660_4T_E52025_EMEA_06.05.png)
1 |
2B006459 REAR BRAKE HOSE CPL (HECU-BRAKE) More informationQuantity required : 1 |
||||||
|
2 |
2B006458 REAR BRAKE HOSE CPL (HECU-PUMPE) More informationQuantity required : 1 |
||||||
|
3 |
2B007004 FRONT BRAKE HOSE CPL (HECU-PUMPE) More informationQuantity required : 1 |
||||||
|
4 |
2B007005 FRONT BRAKE HOSE CPL (HECU-BRAKE) More informationQuantity required : 1 |
||||||
|
5 |
2B006455 FRONT BRAKE HOSE CPL (BRAKE-BRAKE) More informationQuantity required : 1 |
||||||
|
6 |
2B006818 ABS PIPING GUIDE PLATE More informationQuantity required : 1 |
||||||
|
7 |
2D000641 FILLED ABS UNIT (SPARE PARTS) More informationQuantity required : 1 |
||||||
|
8 |
2B006807 ABS UNIT BRACKET More informationQuantity required : 1 |
||||||
|
9 |
2B007075 PLATE BRACKET HOSE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
10 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
11 |
PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201 More informationQuantity required : 1 |
||||||
|
12 |
2B007076 HEXAGONAL BUSH DOUBLE THREAD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
13 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 1 |
||||||
|
14 |
2B000276-GRAFFETTA FISSAGGIO TUBI More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/3/img/50963.JPG)
15 |
SCREW M6X12 OEM APRILIA COMMON A LA RANGE-AP8152186 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
16 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
17 |
WASHER EN T (10X16X3, 5) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP9100053 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
18 |
RUBBER OEM PIAGGIO COMMON A LAGAMME-AP8144328 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
19 |
BUSH SPACER (6X10X16) OEM PIAGGIO COMMON A LA RANGE-AP8121718 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
20 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/6/img/66296.jpg)
21 |
WASHER PLATE (6X20) OEM PIAGGIO COMMUNU A LA RANGE-297029 More informationQuantity required : 2 |
||||||
|
22 |
899811-TUBULURE REMPLISSAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
23 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 16 |
||||||
|
24 |
2B001983-SCREW HOSE BRAKE More informationQuantity required : 5 |
