Vehicle Exploded View - APRILIA RS 660 4T E5+2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

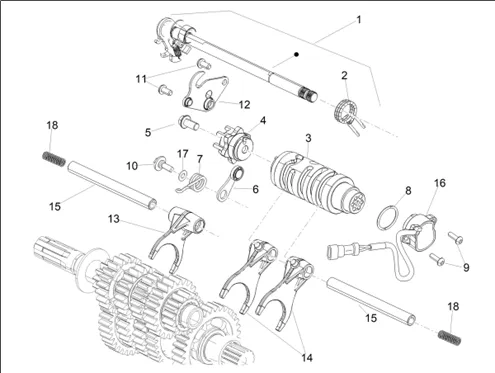

Moteur : 03.17 BOÎTE DE VITESSES / SELECTEUR / DESMODROMIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1280/RS_660_4T_E52025_EMEA_03.17.png)
1 |
2A001637 - SPEED GEAR SELECTOR SHAFT ASSY More informationQuantity required : 1 |
||||||
|
2 |
1A013662 SELECTOR SPRING More informationQuantity required : 1 |
||||||
|
3 |
1A023473-DESMODROMIQUE More informationQuantity required : 1 |
||||||
|
4 |
1A025507 - TAMB.SELECTEUR More informationQuantity required : 1 |
||||||
|
5 |
1A024282-SCREW A HEAD HEXAGONALE More informationQuantity required : 1 |
||||||
|
6 |
1A024110-LEVER More informationQuantity required : 1 |
||||||
|
7 |
1A021613-SPRING DE SÃ - LECTION DES VITESSES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/9/img/69759.jpg)
8 |
O-RING SENSOR OF POSITION DE BOX OEM APRILIA 660 RS, TUONO, TUAREG 2020 >/1000-1100 RSV4 2017 >/MOTO GUZZI V85, V100 2021 > 857494 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
9 |
SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-B0167965 More informationQuantity required : 2 |
||||||
|
10 |
1A021636-SCREW SPÃ - CIALE More informationQuantity required : 1 |
||||||
|
11 |
SCREW TORX (6X16) HEAD BOMBEE OEM APRILIA 660 RS/TUAREG/TUONO E5 +-1A022022 More informationQuantity required : 2 |
||||||
|
12 |
1A025995 - PLAQUE D'ARRET More informationQuantity required : 1 |
||||||
|
13 |
1A018190 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
14 |
1A023448-FOURCHETTE More informationQuantity required : 2 |
||||||
|
15 |
1A025994 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/9/2/9/img/172929.jpg)
16 |
SENSOR OF POSITION DE BOX OF SPEED OEM APRILIA 660 RS, TUONO, TUAREG 2020 >/1000-1100 RSV4 2017 >/MOTO GUZZI V85, V100 2021 >-1A018096R More informationQuantity required : 1 |
||||||
|
17 |
1A021654-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/2/6/img/40326.jpg)
18 |
SPRING BOX OF SPEED OEM APRILIA 1000-1100 RSV4-857175 More informationQuantity required : 2 |
