Vehicle Exploded View - APRILIA RS 660 4T E5+2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

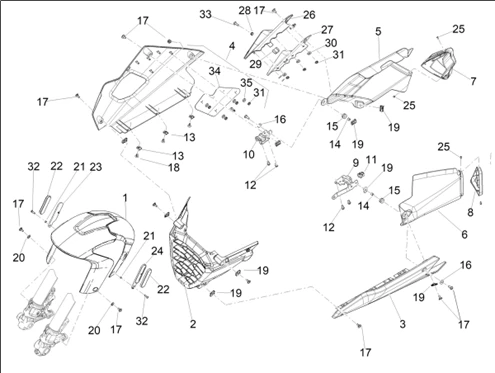

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1280/RS_660_4T_E52025_EMEA_02.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/7/9/9/img/174799.jpg)
1 |
FRONT MUDGUARD OEM APRILIA 660-1100 RS, TUONO 2021 >-2B008635 More informationQuantity required : 1 |
||||||
2 |
FAIRING PROTECTOR RADIATOR OEM APRILIA RS 660 E5 +/660 FACTORY E5 + 2025-2B013074 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/9/3/img/204093.jpg)
3 |
FAIRING FRONT LOWER LEFT OEM APRILIA RS 660 BLACK NV 2023 >-2B006623000NV More informationQuantity required : 1 |
||||||
|
3 |
2B006623 FAIRING LOWER LEFT More informationQuantity required : 1 |
||||||
|
3 |
FAIRING LOWER LEFT OEM APRILIA 660 RS 4T E5 + 2025 (BLUE MARLIN D28)-2B006623000H4 More informationQuantity required : 1 |
||||||
|
4 |
FAIRING LOWER RIGHT BLACK OEM APRILIA 660 RS E5 + 2025/660 FACTORY E5 + 2025 (VENOM YELLOW)-2B014858000NV More informationQuantity required : 1 |
||||||
|
4 |
2B013076 - LOWER RIGHT FAIRING More informationQuantity required : 1 |
||||||
|
4 |
FAIRING LOWER RIGHT OEM APRILIA 660 RS 4T E5 + 2025 (BLUE MARLIN)-2B014858000H4 More informationQuantity required : 1 |
||||||
|
5 |
PROTECTOR EXHAUST RIGHT ORIGNE APRILIA 660 RS/TUONO/FACTORY 2020 >-2B014615 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/1/7/img/171517.jpg)
6 |
PROTECTOR EXHAUST LEFT ORIGNE APRILIA 660 RS, TUONO 2020 >-2B007477 More informationQuantity required : 1 |
||||||
|
7 |
LATCH PROTECTOR RIGHT OEM APRILIA 660 RS E5 +/-FACTORY/TUONO E5 + 2025-2B012823 More informationQuantity required : 1 |
||||||
|
8 |
LATCH PROTECTOR LEFT OEM APRILIA 660 RS E5/E5 +/660 TUONO E5/E5 + 2020 >-2B007479 More informationQuantity required : 1 |
||||||
|
9 |
2B013093 - LEFT LOWER FAIRING FIXING BRACKET More informationQuantity required : 1 |
||||||
|
10 |
CALIPER MOUNTING FAIRING OEM APRILIA 660 RS E5 +/RS FACTORY E5 + 2025-2B014619 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
11 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
12 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
13 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
14 |
BUSH/BUSH (5. 3X8X7. 1) OEM PIAGGIO COMMON A LA RANGE-AP8221036 More informationQuantity required : 2 |
||||||
|
15 |
401605-SILENBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/7/img/69207.jpg)
16 |
WASHER PLATE (6X18) OEM PIAGGIO COMMON A LA RANGE-841821 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
17 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/4/4/3/img/42443.jpg)
18 |
SCREW BTR (5X12) OEM APRILIA 660 RS/1000-1100 RSV4 2020 <-896175 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
19 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
20 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.jpg)
21 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/0/2/img/57502.jpg)
22 |
CATADIOPTRE OEM PIAGGIO COMMON A LA RANGE-AP8224623 More informationQuantity required : 2 |
||||||
|
23 |
2B011441-BRACKET CATADIOPTRE D. More informationQuantity required : 1 |
||||||
|
24 |
2B011442-BRACKET CATADIOPTRE G. More informationQuantity required : 1 |
||||||
|
25 |
2B009107 RIVET A DECLIC More informationQuantity required : 4 |
||||||
|
26 |
PROTECTOR EXHAUST OEM APRILIA RS 660 E5 +/RS 660 FACTORY E5 + 2025-2B014601 More informationQuantity required : 1 |
||||||
|
27 |
PROTECTOR SILENCIEUXT OEM APRILIA RS 660 E5 +/RS 660 FACTORY E5 + 2025-2B014620 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
28 |
BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/6/3/img/174963.jpg)
29 |
BUFFER/RUBBER OEM APRILIA/MOTO GUZZI-2B007247 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
30 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
31 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 7 |
||||||
|
32 |
2B003307-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
33 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 1 |
||||||
|
34 |
PROTECTOR CHALEUR EXHAUST OEM APRILIA RS 660 E5 +/FACTORY E5 + 2025-2B014807 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/2/img/71832.jpg)
35 |
WASHER PLATE (5. 3X10X1) OEM PIAGGIO COMMON A LA RANGE-AP8150177 More informationQuantity required : 1 |
