Vehicle Exploded View - APRILIA RS 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

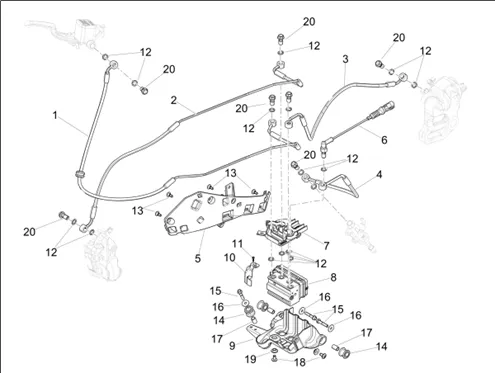

Système de freinage : 06.05 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1228/RS_457_4T_8V_E5_ABS_2024_EMEA_06.05.png)
1 |
2B012120-HOSE OF BRAKE AV HECU ABS-CALIPER More informationQuantity required : 1 |
||||||
|
2 |
2B012119-HOSE OF BRAKE AV MAITRE-CYLINDER-HEC More informationQuantity required : 1 |
||||||
|
3 |
2B010628-REAR BRAKE HOSE CPL (HECU-PUMP) More informationQuantity required : 1 |
||||||
|
4 |
2B010630-HOSE OF BRAKE AR MAITRE-CYLINDER-HEC More informationQuantity required : 1 |
||||||
|
5 |
2B010758-GUIDE HOSE More informationQuantity required : 1 |
||||||
|
6 |
2D000821-BRAKE SWITCH-IDROSTOP More informationQuantity required : 1 |
||||||
|
7 |
2B011333-PLATE HOSE BRAKE More informationQuantity required : 1 |
||||||
|
8 |
2D000893-CALCULATEUR ABS PLEIN More informationQuantity required : 1 |
||||||
|
9 |
2B009705-BRACKET DE CENTRE ABS More informationQuantity required : 1 |
||||||
|
10 |
2B011436-PROTECTOR CONNECTEUR More informationQuantity required : 1 |
||||||
|
11 |
009000-SCREW S00900000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
12 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 16 |
||||||
|
13 |
2B003422-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
14 |
RUBBER OEM PIAGGIO COMMON A LAGAMME-AP8144328 More informationQuantity required : 3 |
||||||
|
15 |
B018853 SCREW More informationQuantity required : 3 |
||||||
|
16 |
227838 WASHER PLATE More informationQuantity required : 3 |
||||||
|
17 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/9/2/img/142492.jpg)
18 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-2B004031 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
19 |
WASHER EN T (10X16X3, 5) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP9100053 More informationQuantity required : 2 |
||||||
|
20 |
2B011672R-SPECIAL SCREW More informationQuantity required : 7 |
