Vehicle Exploded View - APRILIA RS 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

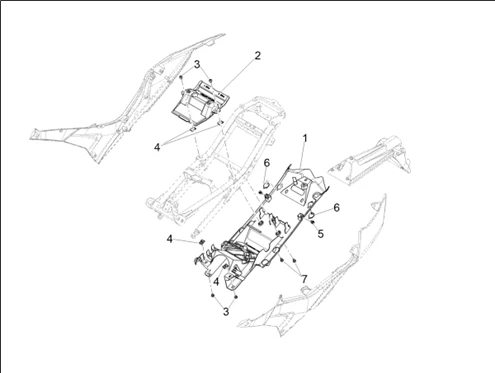

Carrosserie : 02.13 LOGEMENT SOUS-SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1228/RS_457_4T_8V_E5_ABS_2024_EMEA_02.13.png)
1 |
2B011178-LATCH INF. DOOR-SEAT More informationQuantity required : 1 |
||||||
|
2 |
2B010987-COVER BATTERY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
4 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
5 |
AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/3/5/6/img/212356.JPG)
6 |
2B011872-CAP More informationQuantity required : 2 |
||||||
|
7 |
2B011940-SCREW FLANGE More informationQuantity required : 2 |
