Vehicle Exploded View - APRILIA RS 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

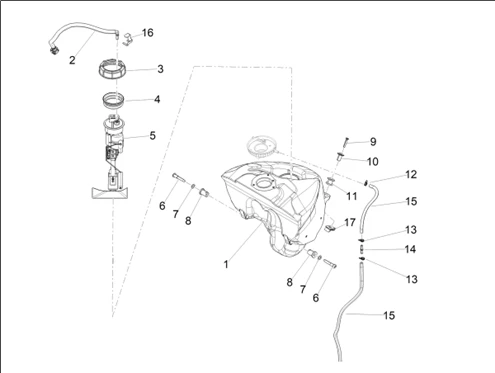

Réservoir : 09.01 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1228/RS_457_4T_8V_E5_ABS_2024_EMEA_09.01.png)
1 |
2B010771-FUEL TANK More informationQuantity required : 1 |
||||||
|
2 |
2B010871-FUEL HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
3 |
NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
4 |
GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003 More informationQuantity required : 1 |
||||||
|
5 |
2B010152 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
|
6 |
2B010824-ROD FILETAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
7 |
WASHER CRANTEE (10. 3X17X2) OEM PIAGGIO COMMON A LA RANGE-012543 More informationQuantity required : 2 |
||||||
|
8 |
2B011689-RUBBER More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
2B011283-BUSH More informationQuantity required : 1 |
||||||
|
11 |
2B012140-RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
12 |
HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
13 |
HOSE CLAMP HOSE (9, 4X12) OEM PIAGGIO COMMON A LA RANGE-CM002905 More informationQuantity required : 2 |
||||||
|
14 |
2B009598-MANIFOLD FITTING More informationQuantity required : 1 |
||||||
|
15 |
CM338705-HOSE VAPEURS FUEL More informationQuantity required : 1 |
||||||
|
16 |
2B011377-PLATE DE HOSE D'ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
