Vehicle Exploded View - DERBI RAMBLA 300 Rambla 300 E3 2010-2011 (EMEA)

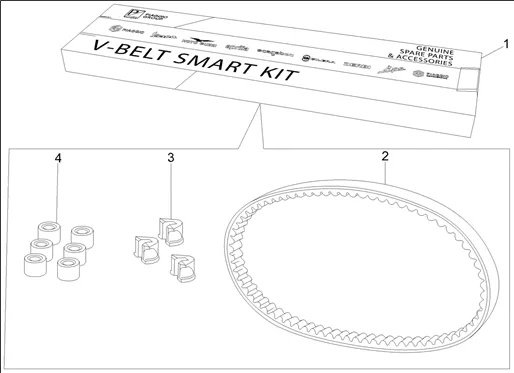

Moteur : 57 KIT TRASMISSIONE

	P2R reference	157620
	Maker reference	1R000449

KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 250-300 BEVERLY 2007 > 2016, CARNABY 2010 >/APRILIA 250-300 SCARABEO LIGHT 2006 >, SPORT-CITY 2006 >-1R000449

More information

Quantity required : 1

	P2R reference	72632
	Maker reference	B013360

BELT TRANSMISSION OEM PIAGGIO 250 BEVERLY 2006 >, 300 BEVERLY 2010 >, CARNABY 2009 >/APRILIA 125-250 SPORT-CITY 2006 >, 250-300 SCARABEO-B013360

More information

Quantity required : 1

	P2R reference	69255
	Maker reference	843028

GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 250-300 MP3 2006 >, X7, VESPA GTS 2005 >, BEVERLY, 250 X8, X9, X-EVO/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO-843028

More information

Quantity required : 3

	P2R reference	69604
	Maker reference	849480

GALET/ROLLER MAXI SCOOTER OEM PIAGGIO APRILIA 250-300 ATLANTIC/GILERA 250-300 NEXUS/PIAGGIO 250-300 BEVERLY, 300 MP3, YOURBAN, VESPA 300 GTS (14 G) (VENDU A L UNITE)-849480

More information

Quantity required : 6
