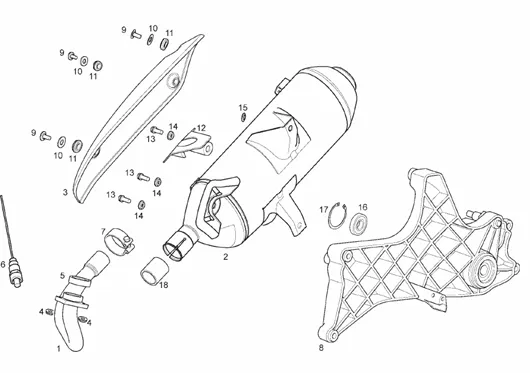

Vehicle Exploded View - DERBI RAMBLA 300 Rambla 300 E3 2010-2011 (EMEA) DERBI

Moteur : 28 GROUPE D’ECHAPPEMENT
Groupe d’echappement
Search
890137 - COLLECTEUR ECHAPP.

1
P2R reference P2R reference 70767
Maker reference Maker reference 890137

890137 - COLLECTEUR ECHAPP.

More information

Quantity required : 1

872871 - ECHAPPEMENT 250 LS

2
P2R reference P2R reference 70441
Maker reference Maker reference 872871

872871-EXHAUST 250 LS

More information

Quantity required : 1

PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO 125-250 BEVERLY, CARNABY/GILERA 125 RUNNER, NEXUS-847308

3
P2R reference P2R reference 69516
Maker reference Maker reference 847308

PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO 125-250 BEVERLY, CARNABY/GILERA 125 RUNNER, NEXUS-847308

More information

Quantity required : 1

NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947

4
P2R reference P2R reference 66509
Maker reference Maker reference 436947

NUT EXHAUST ON CYLINDER HEAD MAXI SCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC-436947

More information

Quantity required : 1

GASKET EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-480853

5
P2R reference P2R reference 66602
Maker reference Maker reference 480853

GASKET EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-480853

More information

Quantity required : 1

SONDA LAMBDA OEM PIAGGIO 125-300-350-400-500 MP3, BEVERLY, 125 YOURBAN, 125 VESPA GTS, 125-300 X10, X7, 400 X8, X-EVO/GILERA 125-300-500 NEXUS, 500 FUOCO/APRILIA 300-400-500 ATLANTIC-6398066

6
P2R reference P2R reference 67855
Maker reference Maker reference 6398066

SONDA LAMBDA OEM PIAGGIO 125-300-350-400-500 MP3, BEVERLY, 125 YOURBAN, 125 VESPA GTS, 125-300 X10, X7, 400 X8, X-EVO/GILERA 125-300-500 NEXUS, 500 FUOCO/APRILIA 300-400-500 ATLANTIC-6398066

More information

Quantity required : 1

CLAMP SERRAGE TUBE EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE 125-250-300-8449404

7
P2R reference P2R reference 69333
Maker reference Maker reference 8449404

CLAMP SERRAGE TUBE EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE 125-250-300-8449404

More information

Quantity required : 1

AP8154048 - PIASTRA SUPPORTO MARMITTA

8
P2R reference P2R reference 71991
Maker reference Maker reference AP8154048

AP8154048 - PIASTRA SUPPORTO MARMITTA

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150538

9
P2R reference P2R reference 71903
Maker reference Maker reference AP8150538

SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150538

More information

Quantity required : 1

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

10
P2R reference P2R reference 71873
Maker reference Maker reference AP8150382

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

More information

Quantity required : 1

RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-841782

11
P2R reference P2R reference 69204
Maker reference Maker reference 841782

RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-841782

More information

Quantity required : 1

AP8119925 - TAPPO MARMITTA

12
P2R reference P2R reference 71382
Maker reference Maker reference AP8119925

AP8119925-CAP MARMITTA

More information

Quantity required : 1

SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287

13
P2R reference P2R reference 71949
Maker reference Maker reference AP8152287

SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287

More information

Quantity required : 1

WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017

14
P2R reference P2R reference 71809
Maker reference Maker reference AP8150017

WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017

More information

Quantity required : 1

BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8120508

15
P2R reference P2R reference 71400
Maker reference Maker reference AP8120508

BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8120508

More information

Quantity required : 1

BEARING (17X47X14) DE ARM DE SUSPENSION REAR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-82545R

16
P2R reference P2R reference 68546
Maker reference Maker reference 82545R

BEARING (17X47X14) DE ARM DE SUSPENSION REAR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-82545R

More information

Quantity required : 1

CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647

17
P2R reference P2R reference 63825
Maker reference Maker reference 0066475

CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647

More information

Quantity required : 1

GASKET GRAPHITE SILENCER OEM PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVO/GILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX-8263885

18
P2R reference P2R reference 68596
Maker reference Maker reference 8263885

GASKET GRAPHITE SILENCER OEM PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVO/GILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX-8263885

More information

Quantity required : 1
