Vehicle Exploded View - DERBI RAMBLA 300 Rambla 300 E3 2010-2011 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

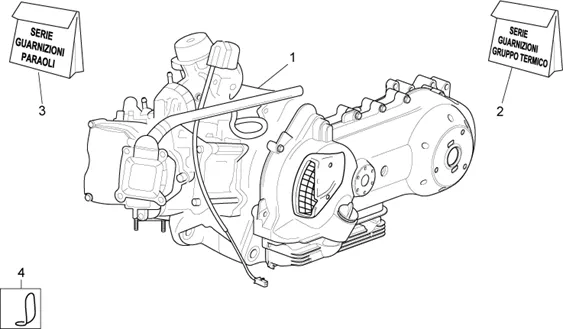

Moteur : 27 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1110/Rambla_300_E3_2010-2011_(EMEA)_27.png)
1 |
CM1583215 - MOTEUR 300 4S/4V E3 APRILIA S.CITY MY'08 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/4/1/img/66941.jpg)
2 |
POCHETTE DE GASKET HAUT ENGINE OEM PIAGGIO ORIGINE125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-4975886 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/4/5/img/66945.jpg)
3 |
GASKET HAUT ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC ENGINE LEADER (POCHETTE)-497593 More informationQuantity required : 1 |
||||||
|
4 |
AP8121856-GUIDE-CABLE More informationQuantity required : 1 |
