Vehicle Exploded View - DERBI RAMBLA 250 Rambla 250 E3 2008-2009 (EMEA) DERBI

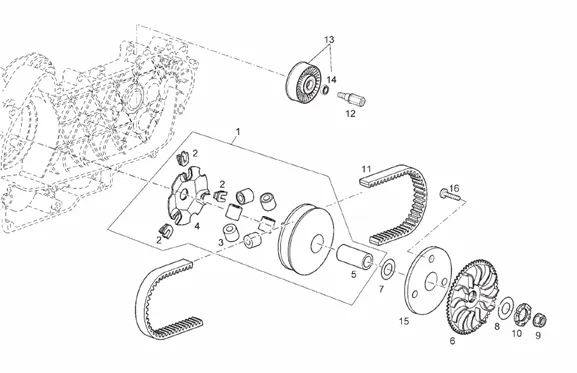

Vues éclatées : 55 VARIATEUR
Variateur
Search
PULLEY MOTRICE/VARIATOR OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS, X7/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO, SPORT-CITY CUB, 300 SR-MAX-CM1444085

1
P2R reference P2R reference 139451
Maker reference Maker reference CM1444085

PULLEY MOTRICE/VARIATOR OEM PIAGGIO 300 MP3, BEVERLY, VESPA GTS, X7/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO, SPORT-CITY CUB, 300 SR-MAX-CM1444085

More information

Quantity required : 1

PULLEY MOTRICE/VARIATOR OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-CM144403

1
P2R reference P2R reference 73233
Maker reference Maker reference CM144403

PULLEY MOTRICE/VARIATOR OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-CM144403

More information

Quantity required : 1

GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555

2
P2R reference P2R reference 66461
Maker reference Maker reference 4348555

GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555

More information

Quantity required : 3

GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 250-300 MP3 2006 >, X7, VESPA GTS 2005 >, BEVERLY, 250 X8, X9, X-EVO/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO-843028

2
P2R reference P2R reference 69255
Maker reference Maker reference 843028

GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 250-300 MP3 2006 >, X7, VESPA GTS 2005 >, BEVERLY, 250 X8, X9, X-EVO/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO-843028

More information

Quantity required : 3

GALET/ROLLER (19X17) 07, 4G, MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS, RUNNER 4T (SET OF 6)-CM1038045

3
P2R reference P2R reference 73079
Maker reference Maker reference CM1038045

GALET/ROLLER (19X17) 07, 4G, MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS, RUNNER 4T (SET OF 6)-CM1038045

More information

Quantity required : 1

GALET/ROLLER MAXI SCOOTER OEM PIAGGIO APRILIA 250-300 ATLANTIC/GILERA 250-300 NEXUS/PIAGGIO 250-300 BEVERLY, 300 MP3, YOURBAN, VESPA 300 GTS (14 G) (VENDU A L UNITE)-849480

3
P2R reference P2R reference 69604
Maker reference Maker reference 849480

GALET/ROLLER MAXI SCOOTER OEM PIAGGIO APRILIA 250-300 ATLANTIC/GILERA 250-300 NEXUS/PIAGGIO 250-300 BEVERLY, 300 MP3, YOURBAN, VESPA 300 GTS (14 G) (VENDU A L UNITE)-849480

More information

Quantity required : 6

FLASQUE A ROULEAUX DE VARIATOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842204

4
P2R reference P2R reference 69223
Maker reference Maker reference 842204

FLASQUE A ROULEAUX DE VARIATOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842204

More information

Quantity required : 1

483889 - ENTRETOISE

5
P2R reference P2R reference 66648
Maker reference Maker reference 483889

483889-SPACER

More information

Quantity required : 1

JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE 250-300 MAXI SCOOTER-840193

6
P2R reference P2R reference 69136
Maker reference Maker reference 840193

JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE 250-300 MAXI SCOOTER-840193

More information

Quantity required : 1

JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-845607

6
P2R reference P2R reference 69358
Maker reference Maker reference 8456075

JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-845607

More information

Quantity required : 1

WASHER PLATE (17X32X1) PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-434885

7
P2R reference P2R reference 66462
Maker reference Maker reference 434885

WASHER PLATE (17X32X1) PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-434885

More information

Quantity required : 1

WASHER PLATE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-433391

8
P2R reference P2R reference 66436
Maker reference Maker reference 433391

WASHER PLATE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-433391

More information

Quantity required : 1

NUT IGNITION/PULLEY OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-B015804

9
P2R reference P2R reference 72693
Maker reference Maker reference B015804

NUT IGNITION/PULLEY OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-B015804

More information

Quantity required : 1

OEM SCOOTER KICK OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-827386

10
P2R reference P2R reference 68667
Maker reference Maker reference 827386

OEM SCOOTER KICK OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-827386

More information

Quantity required : 1

BELT TRANSMISSION OEM PIAGGIO 250 BEVERLY 2006 >, 300 BEVERLY 2010 >, CARNABY 2009 >/APRILIA 125-250 SPORT-CITY 2006 >, 250-300 SCARABEO-B013360

11
P2R reference P2R reference 72632
Maker reference Maker reference B013360

BELT TRANSMISSION OEM PIAGGIO 250 BEVERLY 2006 >, 300 BEVERLY 2010 >, CARNABY 2009 >/APRILIA 125-250 SPORT-CITY 2006 >, 250-300 SCARABEO-B013360

More information

Quantity required : 1

DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 X10 2012 >, BEVERLY INJECTION 2010 >, YOURBAN 2011 >-1A011456

11
P2R reference P2R reference 176682
Maker reference Maker reference 842009

DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 X10 2012 >, BEVERLY INJECTION 2010 >, YOURBAN 2011 >-1A011456

More information

Quantity required : 1

DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 X10 2012 >, BEVERLY INJECTION 2010 >, YOURBAN 2011 >-1A011456

11
P2R reference P2R reference 176682
Maker reference Maker reference 1A011456

DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 X10 2012 >, BEVERLY INJECTION 2010 >, YOURBAN 2011 >-1A011456

More information

Quantity required : 1

SCREW SPECIALE DE PULLEY TENSION BELT OEM PIAGGIO 125-250-300 BEVERLY, CARNABY, 125 X10/APRILIA 125-250 SPORT-CITY, SCARABEO-829326

12
P2R reference P2R reference 68838
Maker reference Maker reference 829326

SCREW SPECIALE DE PULLEY TENSION BELT OEM PIAGGIO 125-250-300 BEVERLY, CARNABY, 125 X10/APRILIA 125-250 SPORT-CITY, SCARABEO-829326

More information

Quantity required : 1

PULLEY DE BELT OEM PIAGGIO 250-300 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X9, 125 X10/APRILIA 125-300 ATLANTIC/GILERA 250-300 NEXUS-833989

13
P2R reference P2R reference 69094
Maker reference Maker reference 833989

PULLEY DE BELT OEM PIAGGIO 250-300 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X9, 125 X10/APRILIA 125-300 ATLANTIC/GILERA 250-300 NEXUS-833989

More information

Quantity required : 1

82577R - ROULEMENT

14
P2R reference P2R reference 68566
Maker reference Maker reference 82577R

82577R-BEARING

More information

Quantity required : 1

PLATE FOR JOUE FIXE VARIATOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 ENGINE LEADER-832715

15
P2R reference P2R reference 69013
Maker reference Maker reference 832715

PLATE FOR JOUE FIXE VARIATOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 ENGINE LEADER-832715

More information

Quantity required : 1

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

16
P2R reference P2R reference 65408
Maker reference Maker reference 0159965

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

More information

Quantity required : 1
