Vehicle Exploded View - DERBI RAMBLA 250 Rambla 250 E3 2008-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

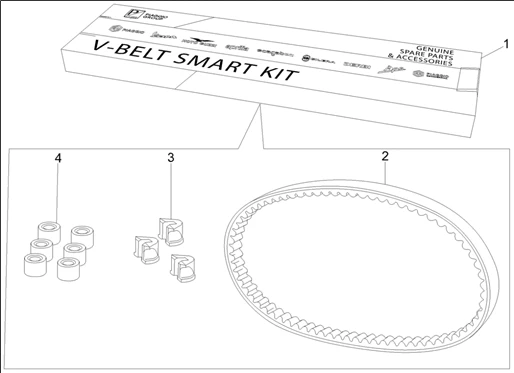

Maintenance : 63 KIT TRASMISSIONE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1106/Rambla_250_E3_2008-2009_(EMEA)_63.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/2/0/img/157620.jpg)
1 |
KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 250-300 BEVERLY 2007 > 2016, CARNABY 2010 >/APRILIA 250-300 SCARABEO LIGHT 2006 >, SPORT-CITY 2006 >-1R000449 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/2/1/img/157621.jpg)
1 |
KIT TRANSMISSION (BELT, GALETS, GUIDES) OEM PIAGGIO 125 BEVERLY 2005 > 2012, CARNABY 2007 > 2010, X10 2012 >/APRILIA 125 SCARABEO 2002 > 2006, SPORT-CITY 2004 > 2010-1R000450 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/6/8/2/img/176682.jpg)
2 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 X10 2012 >, BEVERLY INJECTION 2010 >, YOURBAN 2011 >-1A011456 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/3/2/img/72632.jpg)
2 |
BELT TRANSMISSION OEM PIAGGIO 250 BEVERLY 2006 >, 300 BEVERLY 2010 >, CARNABY 2009 >/APRILIA 125-250 SPORT-CITY 2006 >, 250-300 SCARABEO-B013360 More informationQuantity required : 1 |
||||||
|
2 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 X10 2012 >, BEVERLY INJECTION 2010 >, YOURBAN 2011 >-1A011456 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
3 |
GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/5/5/img/69255.jpg)
3 |
GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 250-300 MP3 2006 >, X7, VESPA GTS 2005 >, BEVERLY, 250 X8, X9, X-EVO/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO-843028 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/9/img/73079.jpg)
4 |
GALET/ROLLER (19X17) 07, 4G, MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS, RUNNER 4T (SET OF 6)-CM1038045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/0/4/img/69604.jpg)
4 |
GALET/ROLLER MAXI SCOOTER OEM PIAGGIO APRILIA 250-300 ATLANTIC/GILERA 250-300 NEXUS/PIAGGIO 250-300 BEVERLY, 300 MP3, YOURBAN, VESPA 300 GTS (14 G) (VENDU A L UNITE)-849480 More informationQuantity required : 6 |
