Vehicle Exploded View - DERBI RAMBLA 250 Rambla 250 E3 2008-2009 (EMEA) DERBI

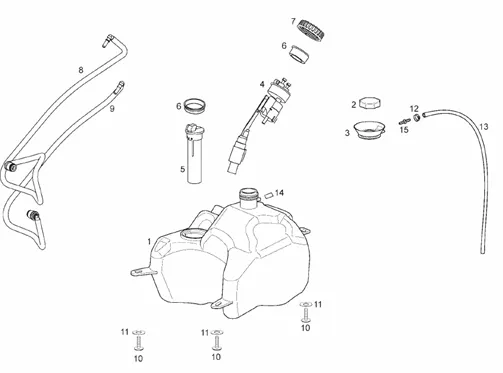

Vues éclatées : 25 RÉSERVOIR ESSENCE
Réservoir essence
Search
AP8179446 - SERBATOIO BENZINA

1
P2R reference P2R reference 72102
Maker reference Maker reference AP8179446

AP8179446 - SERBATOIO BENZINA

More information

Quantity required : 1

AP8144782 - TAPPO SERBATOIO BENZINA

2
P2R reference P2R reference 71784
Maker reference Maker reference AP8144782

AP8144782-CAP TANK BENZINA

More information

Quantity required : 1

RUBBER COLLECTE FUEL OEM PIAGGIO COMMON A LA RANGE-AP8144187

3
P2R reference P2R reference 71753
Maker reference Maker reference AP8144187

RUBBER COLLECTE FUEL OEM PIAGGIO COMMON A LA RANGE-AP8144187

More information

Quantity required : 1

AP8127827 - POMPA BENZINA

4
P2R reference P2R reference 71632
Maker reference Maker reference AP8127827

AP8127827-PUMP BENZINA

More information

Quantity required : 1

AP8127828 - SONDA BENZINA

5
P2R reference P2R reference 71633
Maker reference Maker reference AP8127828

AP8127828-SONDA BENZINA

More information

Quantity required : 1

AP8144422 - JOINT

6
P2R reference P2R reference 71763
Maker reference Maker reference AP8144422

AP8144422-GASKET

More information

Quantity required : 1

AP8158359 - BAGUE;

7
P2R reference P2R reference 71998
Maker reference Maker reference AP8158359

AP8158359-BUSH

More information

Quantity required : 1

656065 - TUYAU ESSENCE

8
P2R reference P2R reference 68312
Maker reference Maker reference 656065

656065-FUEL HOSE

More information

Quantity required : 1

860162 - TUYAU RETOUR ESSENCE

9
P2R reference P2R reference 69791
Maker reference Maker reference 860162

860162 - TUYAU RETOUR ESSENCE

More information

Quantity required : 1

SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329

10
P2R reference P2R reference 71970
Maker reference Maker reference AP8152329

SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329

More information

Quantity required : 1

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

11
P2R reference P2R reference 71873
Maker reference Maker reference AP8150382

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

More information

Quantity required : 1

AP8101770 - COLLIER CLIC

12
P2R reference P2R reference 71161
Maker reference Maker reference AP8101770

AP8101770-CLAMP CLIC

More information

Quantity required : 1

896570 - TUYAU

13
P2R reference P2R reference 70870
Maker reference Maker reference 896570

896570-HOSE

More information

Quantity required : 1

AP8144298 - BOUCHON PURGE

14
P2R reference P2R reference 71755
Maker reference Maker reference AP8144298

AP8144298-CAP PURGE

More information

Quantity required : 1

FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944

15
P2R reference P2R reference 71166
Maker reference Maker reference AP8101944

FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944

More information

Quantity required : 1
