Vehicle Exploded View - DERBI RAMBLA 250 Rambla 250 2ver E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

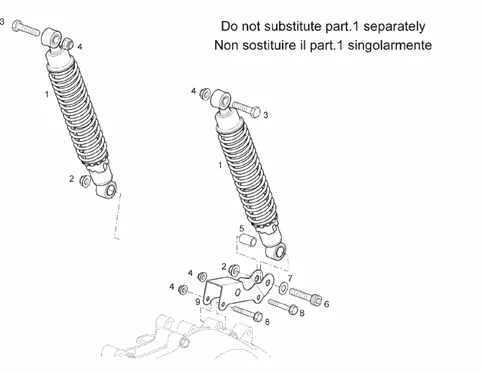

Vues éclatées : 6 AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1108/Rambla_250_2ver_E3_2008_(EMEA)_6.png)
1 |
AP8163551 - AMMORTIZZATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
2 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
3 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
4 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
|
5 |
AP8161031-BUSSOLA AMMORTIZZATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/3/img/71813.jpg)
6 |
SCREW BTR (10X45) OEM PIAGGIO COMMON A LA RANGE-AP8150038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
7 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
8 |
SCREW FLANGE TH (M8X50) OEM PIAGGIO COMMON A LA RANGE-AP8152292 More informationQuantity required : 1 |
||||||
|
9 |
AP8134974-STAFFA BRACKET AMM. More informationQuantity required : 1 |
