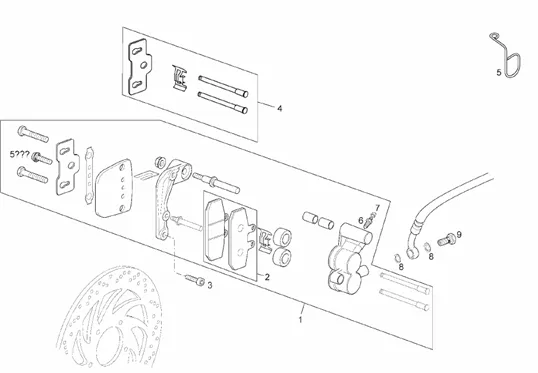

Vehicle Exploded View - DERBI RAMBLA 250 Rambla 250 2ver E3 2008 (EMEA) DERBI

Vues éclatées : 35 PINCE AV
Pince AV
Search
AP8113844 - PINCE FREIN AV

1
P2R reference P2R reference 71325
Maker reference Maker reference AP8113844

AP8113844-PINCE BRAKE FRONT

More information

Quantity required : 1

AP8133739 - PINZA FRENO ANTERIORE

1
P2R reference P2R reference 71668
Maker reference Maker reference AP8133739

AP8133739-PINZA BRAKE ANTERIORE

More information

Quantity required : 1

BRAKE PAD OEM PIAGGIO APRILIA 500 SCARABEO, ATLANTIC 2001 > 2006 FRONT LEFT, 125 SPORTCITY 2006 > AV, 125 SCARABEO 1999 > 2004 (GRIMECA)-AP8133725

2
P2R reference P2R reference 71666
Maker reference Maker reference AP8133725

BRAKE PAD OEM PIAGGIO APRILIA 500 SCARABEO, ATLANTIC 2001 > 2006 FRONT LEFT, 125 SPORTCITY 2006 > AV, 125 SCARABEO 1999 > 2004 (GRIMECA)-AP8133725

More information

Quantity required : 1

BRAKE PADS OEM PIAGGIO MOTO-GUZZI 750 V7 AR/APRILIA 125-250 SPORT-CITY AV, 400-500 SCARABEO AV, 850 NA-MANA AR-AP8133798

2
P2R reference P2R reference 71672
Maker reference Maker reference AP8133798

BRAKE PADS OEM PIAGGIO MOTO-GUZZI 750 V7 AR/APRILIA 125-250 SPORT-CITY AV, 400-500 SCARABEO AV, 850 NA-MANA AR-AP8133798

More information

Quantity required : 1

SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107

3
P2R reference P2R reference 71823
Maker reference Maker reference AP8150107

SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107

More information

Quantity required : 1

KIT SPINDLE ET SPRING BRAKE CALIPER OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY/MOTO-GUZZI 750 V7, NEVADA-AP8133799

4
P2R reference P2R reference 71673
Maker reference Maker reference AP8133799

KIT SPINDLE ET SPRING BRAKE CALIPER OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY/MOTO-GUZZI 750 V7, NEVADA-AP8133799

More information

Quantity required : 1

AP8113867 - PIVOTS+RESSORTS PINCE;

4
P2R reference P2R reference 71327
Maker reference Maker reference AP8113867

AP8113867-PIVOTS + RESSORTS PINCE

More information

Quantity required : 1

AP8221172 - GUIDE-CABLE

5
P2R reference P2R reference 72301
Maker reference Maker reference AP8221172

AP8221172-GUIDE-CABLE

More information

Quantity required : 1

SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8213108

6
P2R reference P2R reference 72199
Maker reference Maker reference AP8213108

SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8213108

More information

Quantity required : 1

AP8133800 - SPURGO ARIA

6
P2R reference P2R reference 71674
Maker reference Maker reference AP8133800

AP8133800-SPURGO ARIA

More information

Quantity required : 1

CAPUCHON RENIFLARD BRAKE CALIPER OROGINE PIAGGIO COMMON A LA RANGE 2008 <-AP8113005

7
P2R reference P2R reference 71284
Maker reference Maker reference AP8113005

CAPUCHON RENIFLARD BRAKE CALIPER OROGINE PIAGGIO COMMON A LA RANGE 2008 <-AP8113005

More information

Quantity required : 1

AP8213575 - CAPPUCCIO SPURGO ARIA

7
P2R reference P2R reference 72220
Maker reference Maker reference AP8213575

AP8213575-CAPPUCCIO SPURGO ARIA

More information

Quantity required : 1

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

8
P2R reference P2R reference 71283
Maker reference Maker reference AP8113004

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

More information

Quantity required : 1

SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003

9
P2R reference P2R reference 71282
Maker reference Maker reference AP8113003

SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003

More information

Quantity required : 1
