Vehicle Exploded View - DERBI RAMBLA 250 Rambla 250 2ver E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

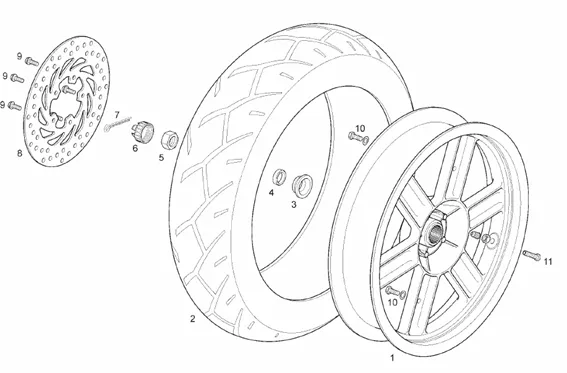

Vues éclatées : 37 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1108/Rambla_250_2ver_E3_2008_(EMEA)_37.png)
1 |
860244 - ROUE AR More informationQuantity required : 1 |
||||||
|
2 |
1R000048 - PNEU ARRIERE 130/80-15 M/C POWER PURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/4/2/img/71442.jpg)
3 |
SPACER DE REAR WHEEL OEM PIAGGIO APRILIA 125-250 SPORT-CITY, SCARABEO-AP8121172 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/4/1/img/71441.jpg)
4 |
SPACER (17. 6X25X6. 6) OEM PIAGGIO COMMON A LAGAMME-AP8121171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
5 |
NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
6 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
|
6 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
7 |
GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/4/img/71304.jpg)
8 |
REAR BRAKE DISC "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, LEONARDO, SCARABEO -AP8113541 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
9 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 1 |
||||||
|
10 |
AP8161026-SCREW SPEED SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
11 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-AP8201546 More informationQuantity required : 1 |
