Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V ie ABS E5 2020-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

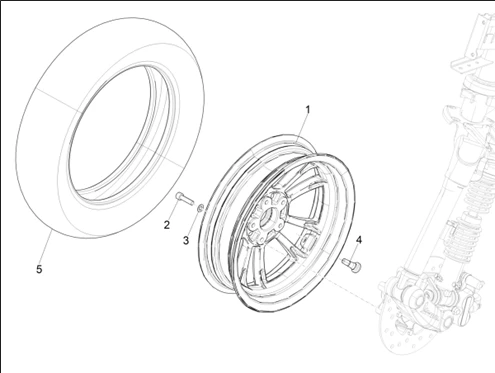

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1252/Primavera_125_4T_3V_ie_ABS_E5_2020-2023_EMEA_04.11.png)
1 |
1C005346 FRONT WHEEL More informationQuantity required : 1 |
||||||
|
1 |
5A001357 FRONT WHEEL More informationQuantity required : 1 |
||||||
|
1 |
1C003879R-FRONT WHEEL 3. 00X12 " More informationQuantity required : 1 |
||||||
|
1 |
1C003570R-FRONT WHEEL 3 " X12 VERSION BASE/SPORT/TT VESPA PRIMAVERA More informationQuantity required : 1 |
||||||
|
1 |
1C007160-FRONT WHEEL 3, 00 X 12 " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
2 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-015792 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
2 |
SCREW BTR (8X35) MOUNTING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-598921 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
3 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
3 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
4 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679 More informationQuantity required : 1 |
||||||
|
5 |
1C003736-TYRE 110/70-12 " More informationQuantity required : 1 |
||||||
|
5 |
TYRE (120/70-11 ") OEM PIAGGIO 50-125 VESPA LX, PRIMAVERA, VESPA-S-1C002690 More informationQuantity required : 1 |
||||||
|
5 |
1C002662-TYRE 110/70-12 " More informationQuantity required : 1 |
||||||
|
5 |
1C006466-TYRE AV More informationQuantity required : 1 |
