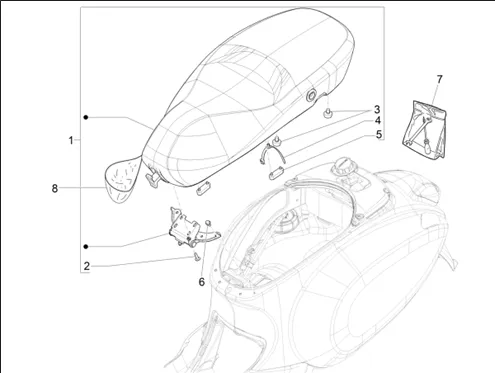

Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 Primavera 125 4T 3V ie ABS E5 2020-2023 (EMEA) VESPA

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
Selle/sieges
Search
1B007926 - SADDLE ASSEMBLY BEIGE

1
P2R reference P2R reference 177370
Maker reference Maker reference 1B007926

1B007926 SADDLE ASSEMBLY BEIGE

More information

Quantity required : 1

1B009069 - COMPLETE SADDLE GREY SMOKE

1
P2R reference P2R reference 215869
Maker reference Maker reference 1B009069

1B009069-COMPLETE SADDLE GREY SMOKE

More information

Quantity required : 1

5A001253 - SADDLE ASSEMBLY LIGHT BROWN

1
P2R reference P2R reference 215870
Maker reference Maker reference 5A001253

5A001253-SADDLE ASSEMBLY LIGHT BROWN

More information

Quantity required : 1

1B005212000C9 - COMPLETE SADDLE WITH HINGE

1
P2R reference P2R reference 215871
Maker reference Maker reference 1B005212000C9

1B005212000C9-COMPLETE SADDLE WITH HINGE

More information

Quantity required : 1

1B005212000C3 - SELLE

1
P2R reference P2R reference 155525
Maker reference Maker reference 1B005212000C3

1B005212000C3-SEAT

More information

Quantity required : 1

1B005212000C4 - SELLE

1
P2R reference P2R reference 155529
Maker reference Maker reference 1B005212000C10

SEAT BLACK OEM PIAGGIO 125 PRIMAVERA 2016 > VERSION SPORT-1B005212000C10

More information

Quantity required : 1

1B005212000C8 - SADDLE ASSEMBLY RED

1
P2R reference P2R reference 177371
Maker reference Maker reference 1B005212000C8

1B005212000C8 SADDLE ASSEMBLY RED

More information

Quantity required : 1

1B005212000C7 - SELLE

1
P2R reference P2R reference 177372
Maker reference Maker reference 1B005212000C7

1B005212000C7 SEAT

More information

Quantity required : 1

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

2
P2R reference P2R reference 73367
Maker reference Maker reference CM179302

SCREW TORX (6X22) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179302

More information

Quantity required : 4

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

3
P2R reference P2R reference 67157
Maker reference Maker reference 577492

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

More information

Quantity required : 2

CLAMP OEM PIAGGIO COMMON A LA RANGE-298729

4
P2R reference P2R reference 66307
Maker reference Maker reference 298729

CLAMP OEM PIAGGIO COMMON A LA RANGE-298729

More information

Quantity required : 1

BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456

5
P2R reference P2R reference 66292
Maker reference Maker reference 296456

BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456

More information

Quantity required : 2

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

6
P2R reference P2R reference 72706
Maker reference Maker reference B016426

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

More information

Quantity required : 4

1C000590 - TROUSSE OUTILS

7
P2R reference P2R reference 76021
Maker reference Maker reference 1C000590

1C000590-TROUSSE OUTILS

More information

Quantity required : 1

583065 - BOLSA HTAS BLD 125/150

7
P2R reference P2R reference 215872
Maker reference Maker reference 583065

583065 - BOLSA HTAS BLD 125/150

More information

Quantity required : 1

1B008652 - KIT SADDLE COVER

8
P2R reference P2R reference 177280
Maker reference Maker reference 1B008652

1B008652 KIT SADDLE COVER

More information

Quantity required : 1
